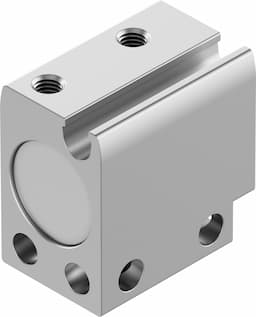

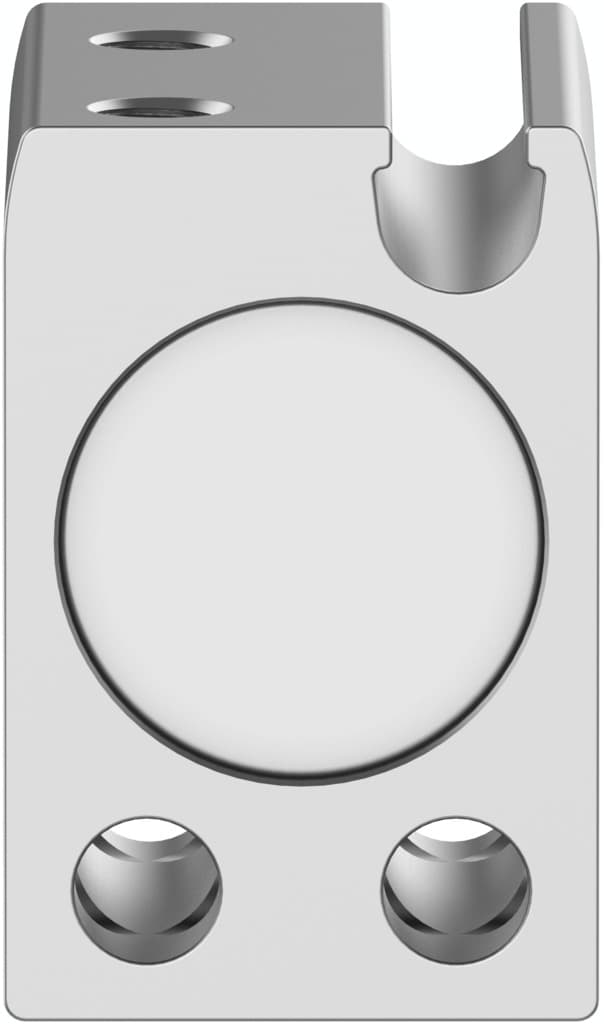

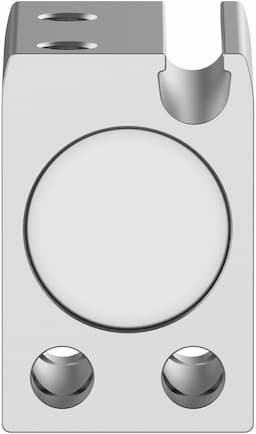

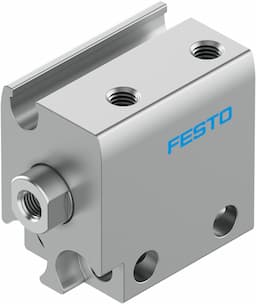

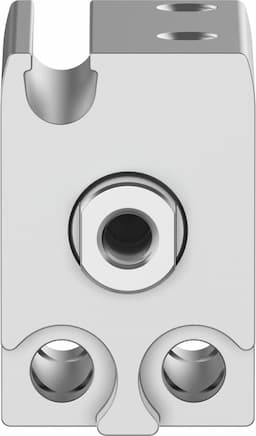

AEN-S-10-5-I Pneumatic Cylinder - Festo

Selling Points

1The AEN-S-10-5-I pneumatic cylinder is designed for compact applications, offering a stroke length of 5 mm and 10 mm, making it versatile for various automation tasks.
2This cylinder operates double-acting, allowing for both extension and retraction, enhancing its functionality in diverse applications.
3The piston rod is made from high-alloy stainless steel, ensuring durability and resistance to corrosion, making it suitable for demanding environments.
4With 1–4 day delivery options, the AEN-S-10-5-I cylinder ensures that you can quickly integrate it into your automation system.
5The cylinder features a M3 pneumatic connection and can be mounted via a through-hole, providing flexibility in installation and integration.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	10 mm
Cushioning	No cushioning	Mounting position	Any
Mode of operation	Pushing	Piston rod end	Internal thread
Structural design	Piston Piston rod	Symbol	00991200
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Impact energy in the end positions	0.012J
Theoretical force at 6 bar, retracting	5.3N	Theoretical force at 6 bar, advancing	41.7N
Moving mass	4.1g	Product weight	17g
Type of mounting	With through-hole	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Material of dynamic seals	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4891759

Specifications may be subject to change without notice
