Product Model
aen-s-40-25-i-p-a
Selling Points

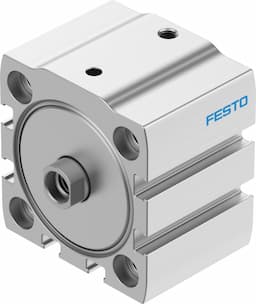

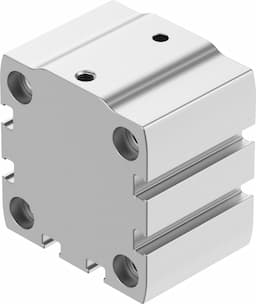

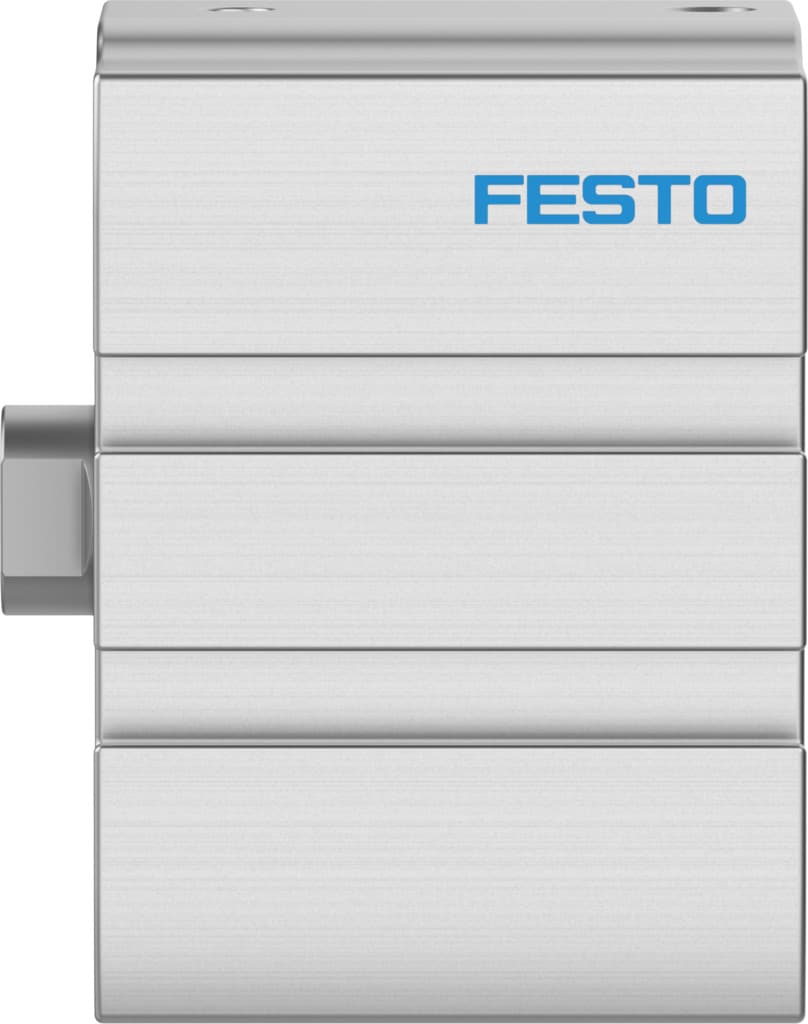

- 1The Festo AEN-S-40-25-I-P-A compact cylinder features a small footprint, making it perfect for space-constrained applications.
- 2This cylinder operates in both extension and retraction modes, providing flexibility in various pneumatic systems.
- 3With an operating pressure range of 1.5 to 8 bar, the AEN-S-40-25-I-P-A is suitable for demanding applications requiring high force.
- 4Equipped with elastic cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear on the piston rod.
- 5The AEN-S-40-25-I-P-A offers optional mounting positions, allowing for easy integration into various mechanical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 40 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 54N |
Theoretical force at 6 bar, advancing | 700N | Moving mass at 0?mm stroke | 62g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 304g |
Additional weight per 10?mm stroke | 45g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 5149292 |
Specifications may be subject to change without notice
