Product Model
aen-s-50-10-i-p-a
Selling Points

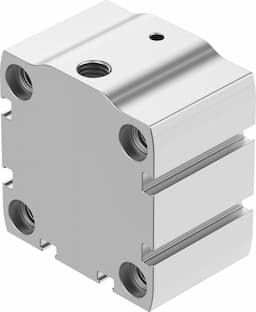

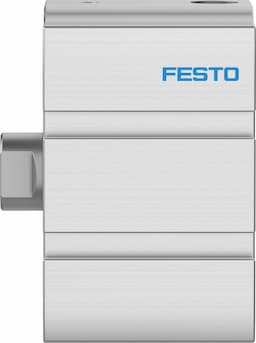

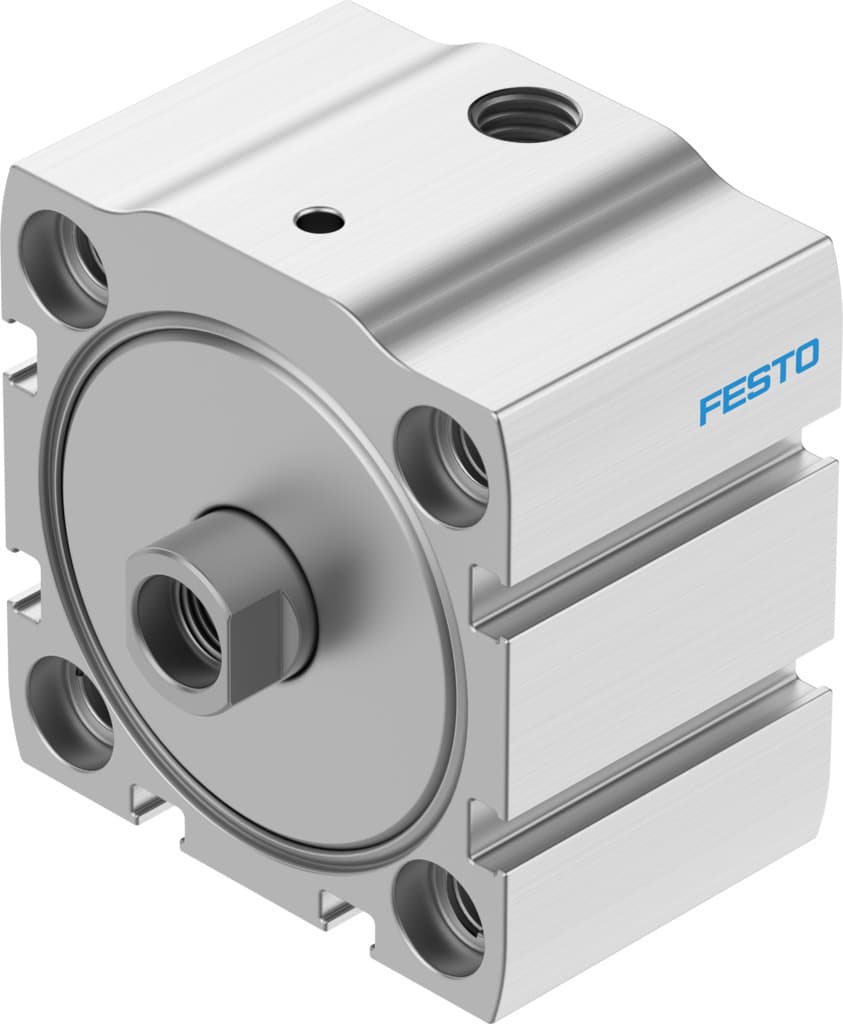

- 1The AEN-S-50-10-I-P-A compact air cylinder offers a stroke of 10 mm and a piston diameter of 50 mm, ensuring precise and controlled movements in various applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3The cylinder can be mounted in any position, offering flexibility in system design and integration. It can be mounted via a through-hole, internal thread, or with accessories.
- 4Constructed from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder ensures durability and resistance to corrosion.
- 5Designed for pushing mode operation, the AEN-S-50-10-I-P-A compact air cylinder operates efficiently within an operating pressure range of 0.04 MPa to 1 MPa (0.4 bar to 10 bar), making it suitable for a variety of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 50 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.4bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 1J | Theoretical force at 6 bar, retracting | 66.2N |
Theoretical force at 6 bar, advancing | 1106N | Moving mass at 0?mm stroke | 104g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 324g |
Additional weight per 10?mm stroke | 63g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 5137803 |
Specifications may be subject to change without notice
