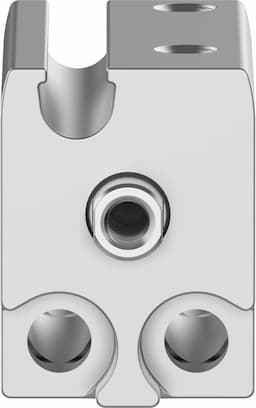

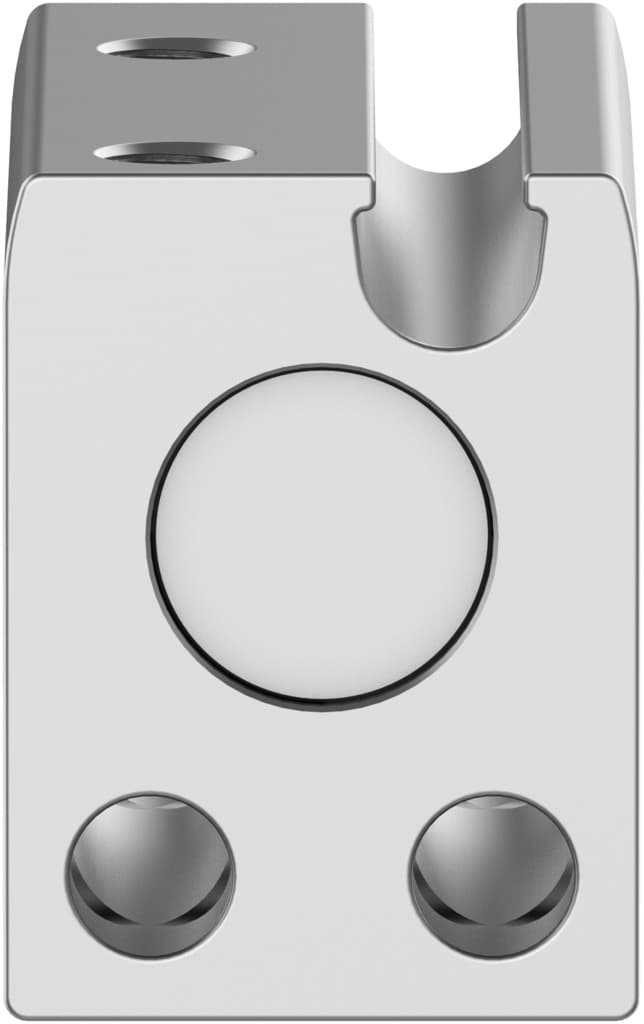

Product Model
aen-s-6-10-i
Selling Points
- 1The Festo AEN-S-6-10-I compact air cylinder offers a 10mm stroke and 6mm piston diameter, ensuring high precision in pushing operations.
- 2This pneumatic cylinder features no cushioning, allowing for precise control and minimal energy loss.
- 3The AEN-S-6-10-I is versatile in mounting positions, making it suitable for a wide range of applications.
- 4With an internal thread at the piston rod end, this cylinder provides reliable and secure connections.
- 5Ideal for use in industries requiring high precision and reliability, the Festo AEN-S-6-10-I is a reliable choice for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Symbol | 00991200 |
Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.006J |
Theoretical force at 6 bar, retracting | 4N | Theoretical force at 6 bar, advancing | 13N |
Moving mass | 2.3g | Product weight | 15g |
Type of mounting | With through-hole | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4984930 |
Specifications may be subject to change without notice
