Product Model
aen-s-63-10-i-p-a
Selling Points

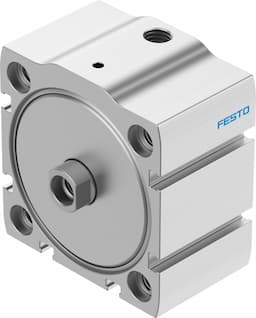

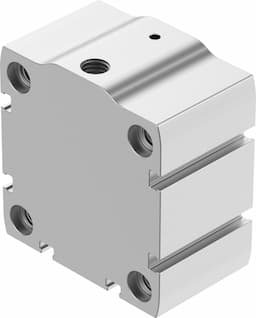

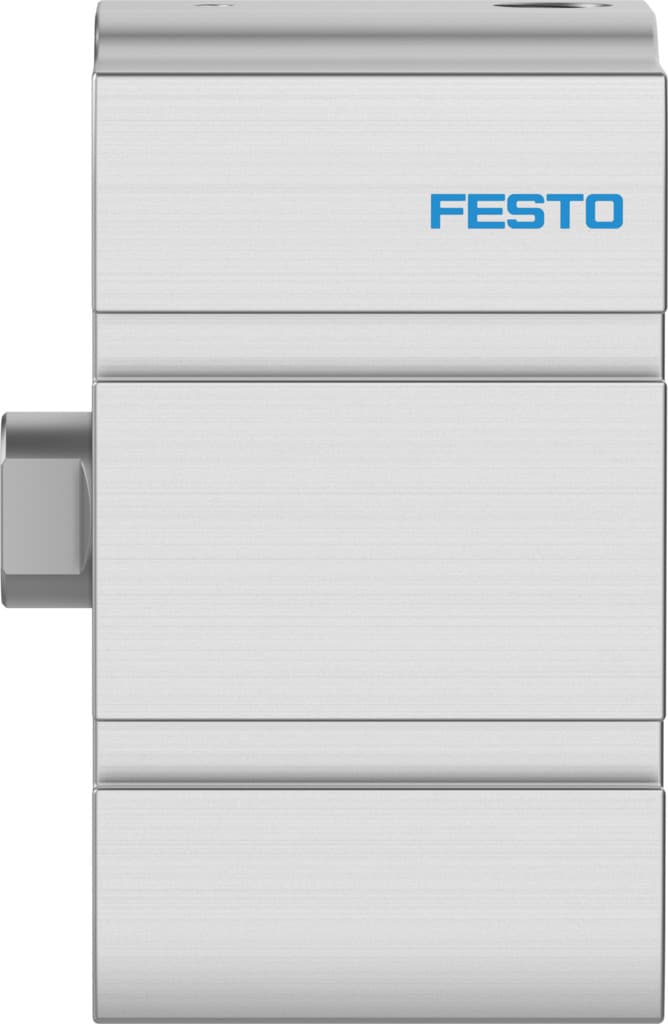

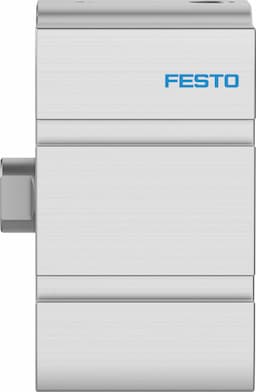

- 1The AEN-S-63-10-I-P-A compact cylinder is made from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
- 2This double-acting cylinder offers a stroke length of 10 mm and a piston diameter of 63 mm, making it suitable for various industrial applications requiring precise movement.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear on the components.
- 4The AEN-S-63-10-I-P-A can be mounted via through-hole or female thread, offering flexibility in installation and integration into different systems.
- 5Designed to operate with compressed air according to ISO 8573-1:2010, this cylinder ensures reliable performance in a wide range of industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 63 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.4bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 1.3J | Theoretical force at 6 bar, retracting | 69.9N |
Theoretical force at 6 bar, advancing | 1780N | Moving mass at 0?mm stroke | 151g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 499g |
Additional weight per 10?mm stroke | 77g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 5132651 |
Specifications may be subject to change without notice
