Product Model
aevc-12-10-p
Selling Points

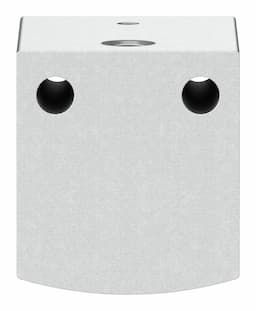

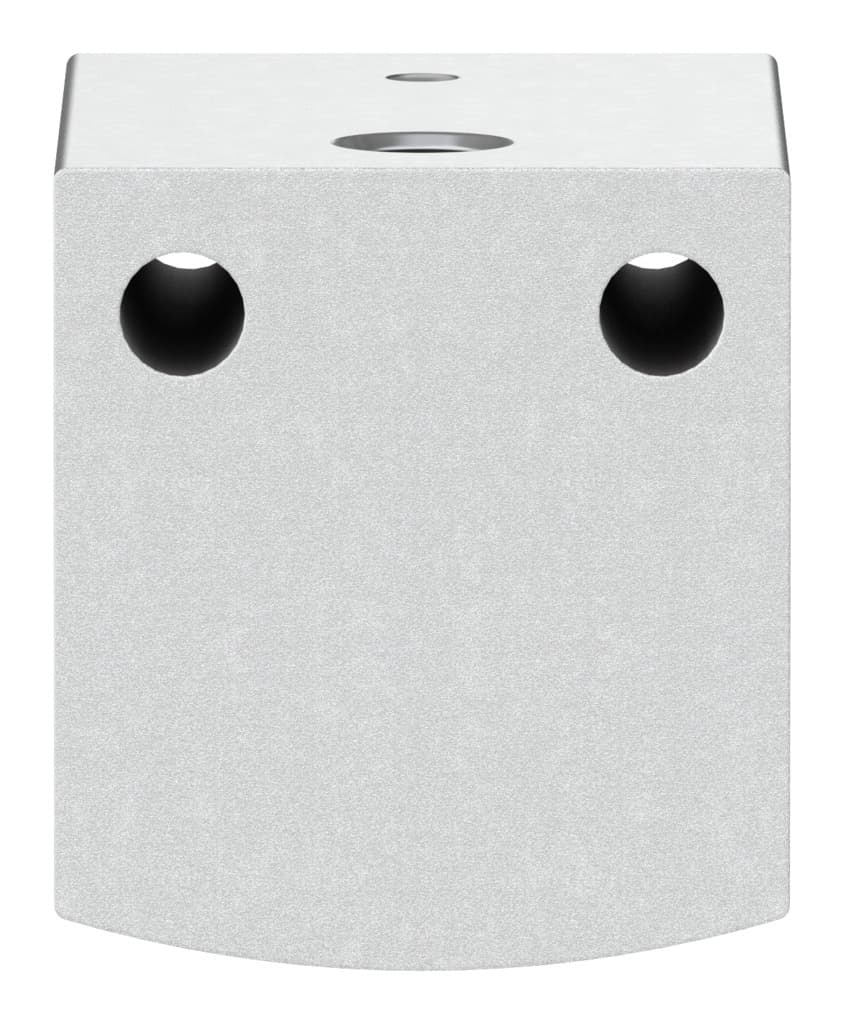

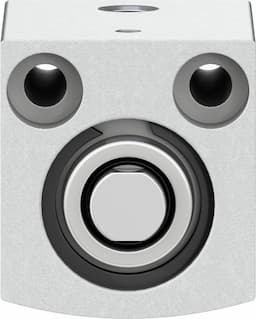

- 1The Festo AEVC-12-10-P short-stroke cylinder offers a stroke length of 10 mm and a piston diameter of 12 mm, making it ideal for applications requiring precise movement.
- 2This cylinder features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the piston rod.
- 3The AEVC-12-10-P is designed for single-acting pushing mode and can operate with compressed air within the range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar).
- 4With a spring return force of 4 N and a moving mass of 6.9 g, this cylinder provides efficient and controlled motion in various industrial applications.
- 5The AEVC-12-10-P is made from RoHS-compliant materials, including wrought aluminum alloy for the cover and high-alloy steel for the piston rod, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Spring resetting force with piston rod in retracted position | 4N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 59.3N |
Moving mass | 6.9g | Product weight | 32g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 530567 |
Specifications may be subject to change without notice
