Product Model

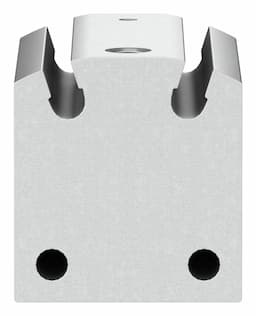

aevc-12-10-p-a
Selling Points
- 1The AEVC-12-10-P-A short-stroke cylinder offers precise control and reliable operation, making it ideal for various industrial applications.
- 2With a 10mm stroke and 12mm bore, this cylinder is designed to be compact, saving space in your automation setup.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 4Available with optional mounting positions and hole patterns conforming to VDMA 24562, it can be easily integrated into your system.
- 5Classified as CRC 1 - Low corrosion stress, this cylinder is suitable for applications where corrosion resistance is a concern.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Spring resetting force with piston rod in retracted position | 4N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 59.3N |
Moving mass | 9.5g | Product weight | 63g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 530571 |
Specifications may be subject to change without notice
