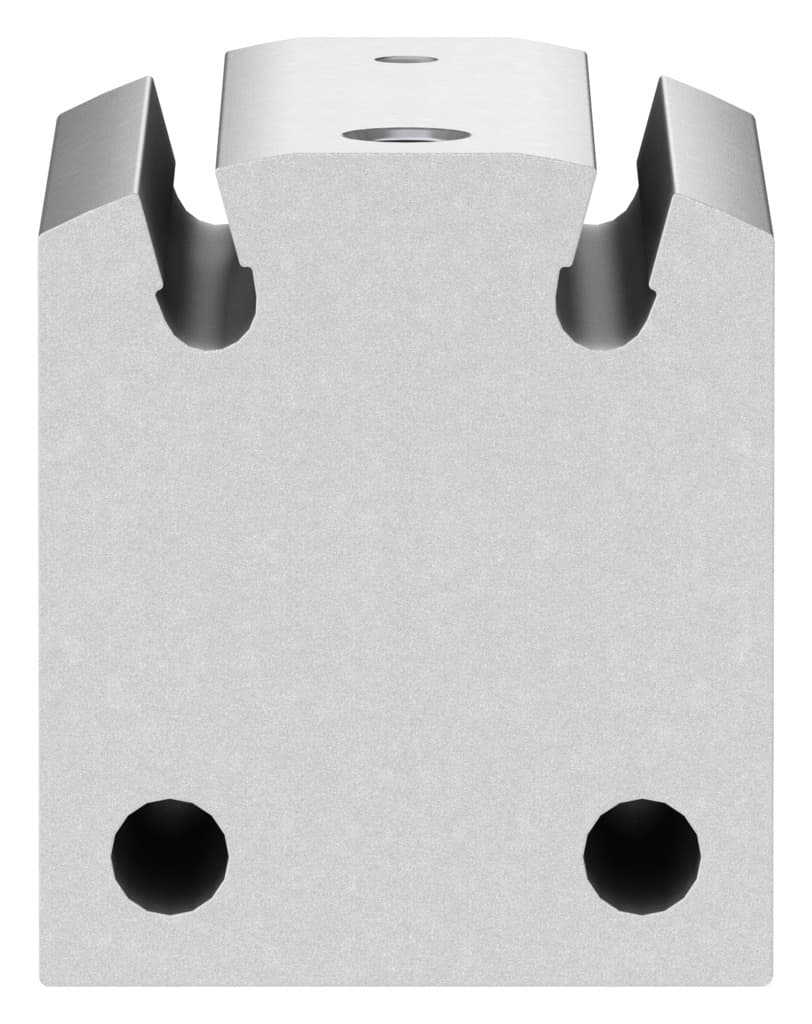

Festo AEVC-16-10-A-P-A Short Stroke Cylinder - High-Quality Pneumatic Components

Selling Points

1The AEVC-16-10-A-P-A short stroke cylinder is built with high-alloy steel and anodized wrought aluminum alloy, ensuring durability and resistance to corrosion.
2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear on components.
3The cylinder can be mounted via through-holes or accessories, offering flexibility in installation options.
4Designed for proximity sensing applications, the piston-rod end features a male thread, making it suitable for various industrial tasks.
5With an operating pressure range of 1.5 to 10 bar and an ambient temperature range of -20 to +80°C, this cylinder operates efficiently in a wide range of conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	16 mm
Spring resetting force with piston rod in retracted position	5N	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Pushing Single-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Operating pressure	21.75psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, advancing	112N
Moving mass	17g	Product weight	89g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188103

Specifications may be subject to change without notice
