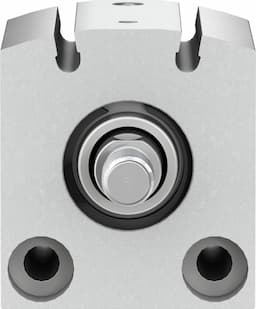

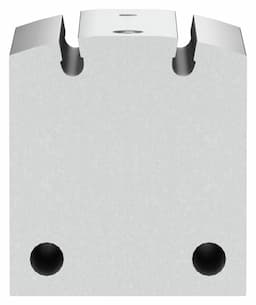

Product Model
aevc-25-10-a-p-a
Selling Points
- 1High-Quality Construction: Built with durable materials like wrought aluminum alloy and high-alloy steel.
- 2Elastic Cushioning: Features elastic cushioning rings/pads at both ends for smooth operation.
- 3Low Corrosion Resistance: Meets corrosion resistance class (CRC) 1, ensuring reliability in harsh environments.
- 4Versatile Mounting: Can be mounted via through-hole or with accessories, offering flexibility in installation.
- 5Compact Design: Compact design with a stroke of 10 mm and piston diameter of 25 mm, ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 25 mm |
Spring resetting force with piston rod in retracted position | 15N | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 272N |
Moving mass | 35g | Product weight | 168g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 188167 |
Specifications may be subject to change without notice
