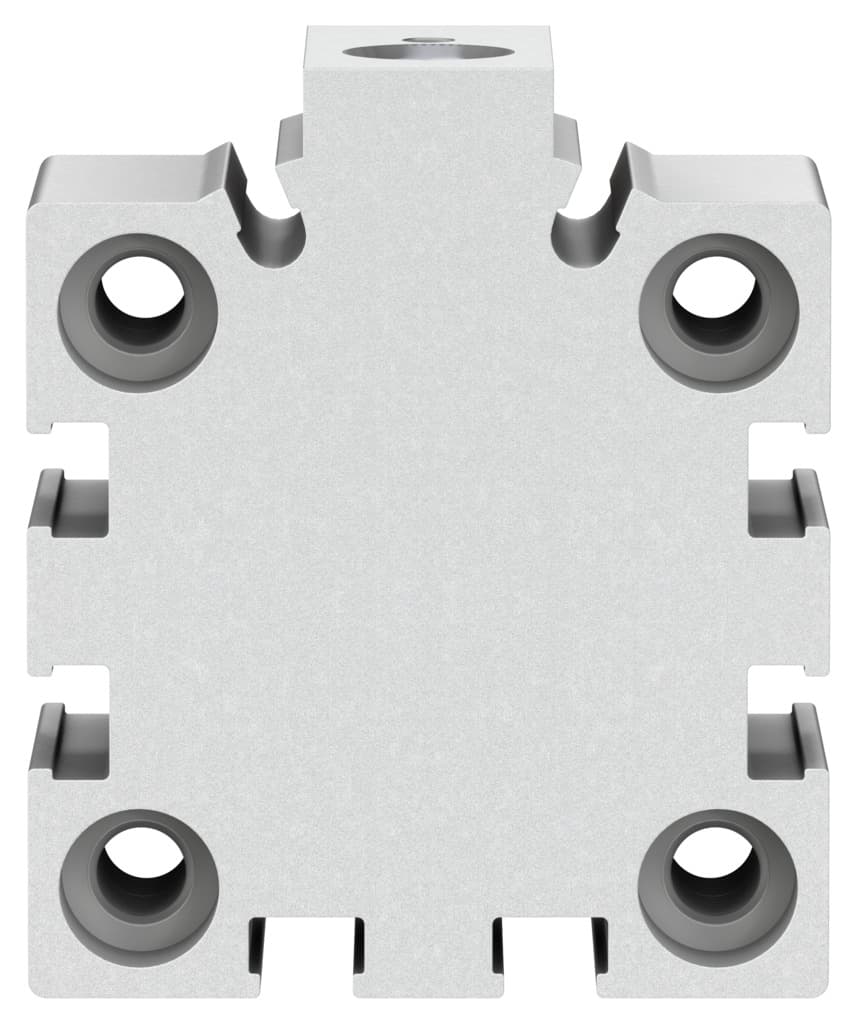

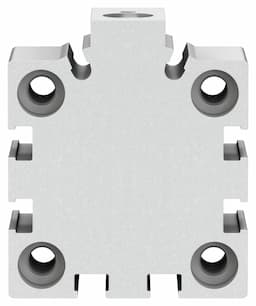

Festo AEVC-32-5-A-P: High-Precision Short-Stroke Cylinder

Selling Points

1High Precision: Designed for precise applications with a 5mm stroke and 32mm piston diameter.
2Spring Return Force: Equipped with a spring return force of 22N for reliable operation.
3ISO Compliance: Meets ISO 6431 standards for hole pattern and VDMA 24562 for cushioning.
4Flexible Cushioning: Features elastic cushioning rings/plates at both ends for smooth operation.
5Versatile Mounting: Offers optional mounting positions and compatibility with proximity switches.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	32 mm
Spring resetting force with piston rod in retracted position	22N	Based on norm	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991730
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, advancing	455N	Moving mass	40g
Product weight	133g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188201
