Product Model
cpe10-m1ch-5/3g-m7
Selling Points

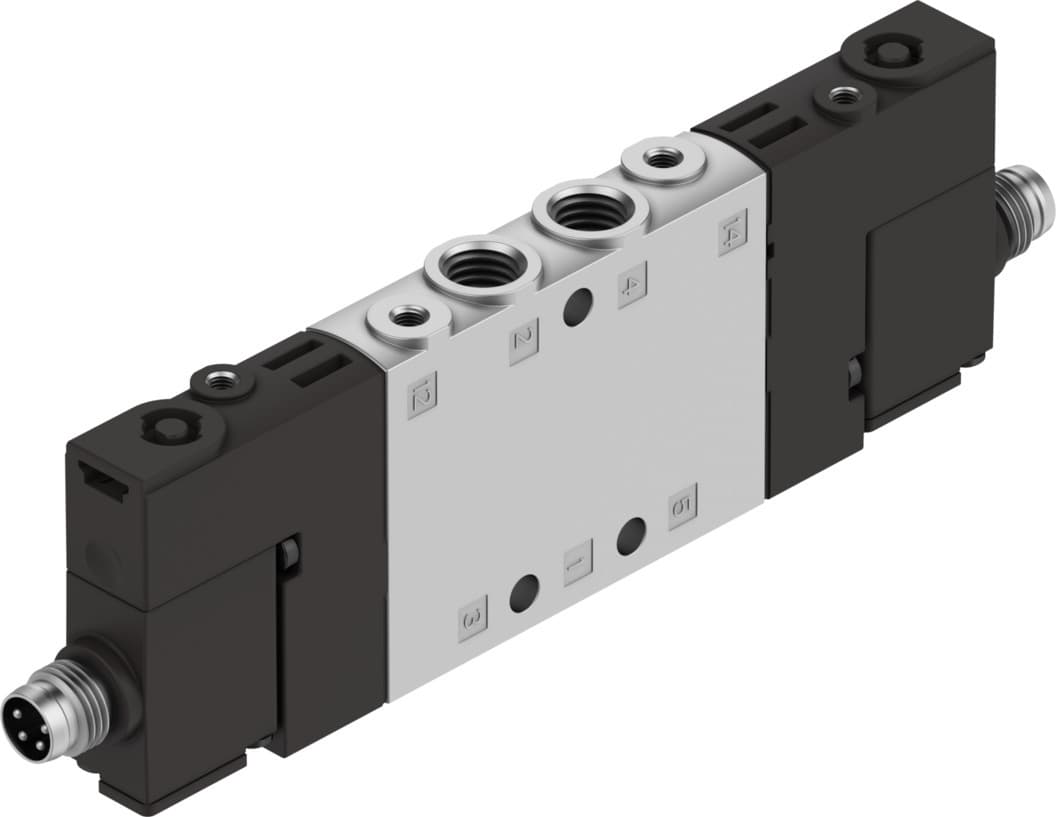

- 1The Festo CPE10-M1CH-5/3G-M7 air solenoid valve is designed for high-performance pneumatic applications, featuring a 5/3-way mid-position valve with a standard nominal flow rate of 350 l/min.
- 2This valve operates with an electrical actuation type and has a compact design with a width of 10 mm, making it ideal for space-constrained systems.
- 3The CPE10-M1CH-5/3G-M7 is certified for use in maritime environments and meets IP65 and IP67 protection standards, ensuring reliability in harsh conditions.
- 4It operates within a temperature range of -5°C to 50°C and supports operation with oil lubrication, enhancing its durability and performance.
- 5The valve is equipped with a mechanical spring reset method and offers manual override functionality, providing flexibility and control in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Electrical |
Width | 10mm | Standard nominal flow rate | 350l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X UL MH19482 |
Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Nominal width | 4mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991033 |
Valve position ID | Label holder | Lap | Overlap |
Switching time off | 20ms | On switching time | 16ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.28 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Max. tightening torque plug | 0.4Nm |
Product weight | 68g | Electrical connection | 4-pin M8x1 |
Type of mounting | With through-hole | Pilot exhaust air port 82 | M3 |
Pilot exhaust air port 84 | M3 | Pilot air port 12 | M3 |
Pilot air port 14 | M3 | Pneumatic connection 1 | M7 |
Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
Pneumatic connection 4 | M7 | Pneumatic connection 5 | M7 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 550227 |
Specifications may be subject to change without notice
