Product Model

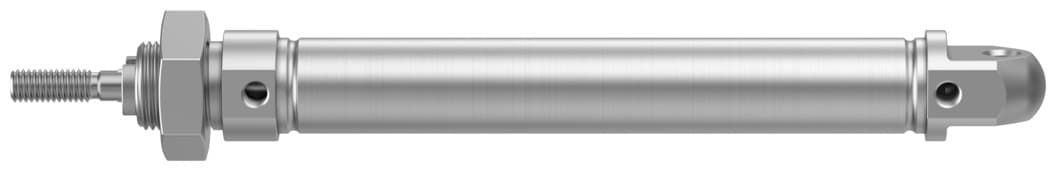

crdsnu-16-80-p-a
Selling Points
- 1The CRDSNU-16-80-P-A is a standards-based pneumatic cylinder that conforms to ISO 6432, ensuring compatibility and reliability in various industrial settings.
- 2Made from high-alloy stainless steel, this cylinder offers excellent corrosion resistance and durability, making it suitable for use in harsh environments.
- 3Equipped with elastic cushioning rings/plates at both ends, the CRDSNU-16-80-P-A provides smooth operation and reduces wear on the cylinder, extending its lifespan.
- 4The cylinder features a piston rod thread of M6 and is designed for double-acting operation, allowing for precise control and efficient use of compressed air.
- 5Suitable for use in cleanroom environments (Class 6 according to ISO 14644-1) and food applications, the CRDSNU-16-80-P-A meets stringent cleanliness and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152554 |
Specifications may be subject to change without notice
