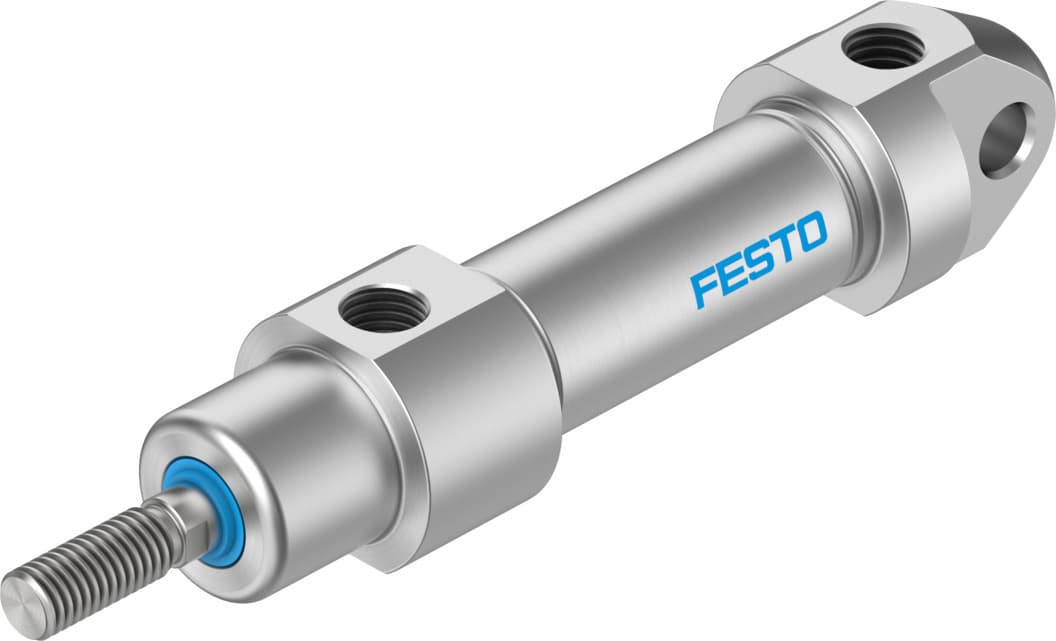

Festo CRDSNU-B-20-160-PPS-A-MG-A1 ISO Cylinder - High-Performance Pneumatic Solution

Selling Points

1ISO 6432 Compliance: Meets international standards for pneumatic cylinders.
2Self-Adjusting Cushioning: Optimizes performance with self-adjusting pneumatic end-position cushioning.
3Robust Stainless Steel: Constructed with high-alloyed stainless steel for corrosion resistance and durability.
4Wide Operating Range: Operates in ambient temperatures from 0 to 80°C and pressures from 1 to 10 bar.
5Versatile Mounting Options: Suitable for arbitrary installation positions with optional mounting accessories.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	160mm	Piston diameter	20 mm
Based on norm	ISO 6432	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00992970
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	4 - Particularly high corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
For use in the food industry	See supplementary material information	Ambient temperature	0°C 80°C
Theoretical force at 6 bar, retracting	158N	Theoretical force at 6 bar, advancing	188N
Moving mass at 0?mm stroke	42.1g	Additional moving mass per 10?mm stroke	3.9g
Basic weight with 0?mm stroke	310g	Additional weight per 10?mm stroke	7.2g
Type of mounting	With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	High-alloy stainless steel
Piston rod material	High-alloy stainless steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	8073973

Specifications may be subject to change without notice
