Product Model

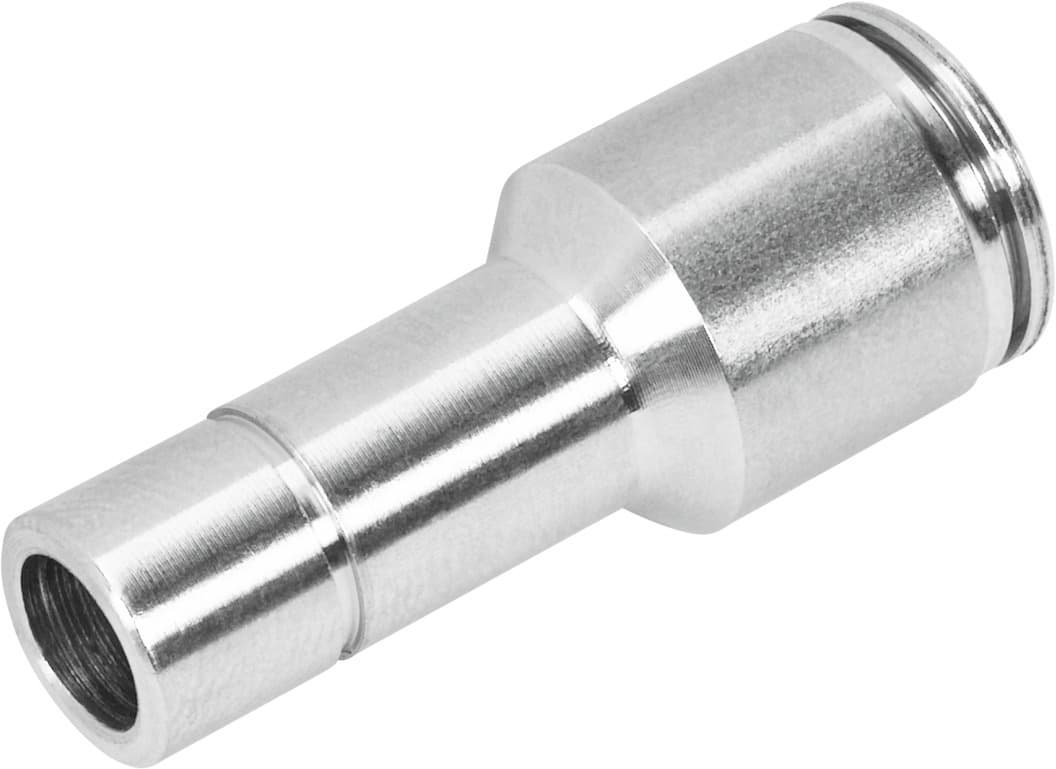

crqs-3/8h-5/16-u
Selling Points
- 1Meets CRC 4 standards for very high corrosion stress.
- 2Operates from -20°C to 150°C (-4°F to 302°F).
- 3Straight design with optional mounting positions.
- 4Compatible with compressed air to ISO 8573-1:2010.
- 5Made from high-alloy stainless steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.502mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
Product weight | 15.507g | Usable connector cables | PFAN |
Pneumatic connection 1 | Push-in sleeve ? 3/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" |
Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 565358 |
Specifications may be subject to change without notice
