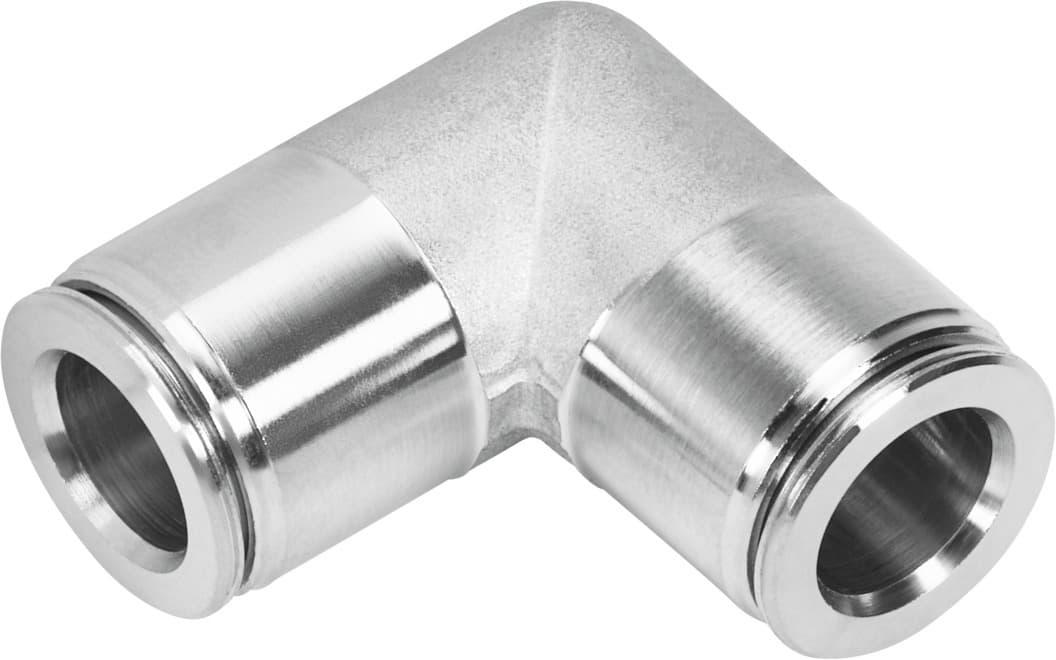

Product Model
crqsl-1/2t-u
Selling Points
- 1The CRQSL-1/2T-U features a corrosion resistance class of 4, ensuring durability in harsh environments.
- 2Suitable for use in the food industry, making it a reliable choice for applications requiring high hygiene standards.
- 3Operates between -20 °C and 150 °C, providing flexibility in various temperature conditions.
- 4Handles operating pressures from -0.095 MPa to 1.4 MPa, suitable for demanding pneumatic systems.
- 5Constructed with high-alloy stainless steel for the housing and releasing ring, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.998mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
Product weight | 50.491g | Usable connector cables | PFAN |
Pneumatic connection 1 | For pneumatic tubing outside diameter 1/2" | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/2" |
Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 565349 |
Specifications may be subject to change without notice
