Product Model

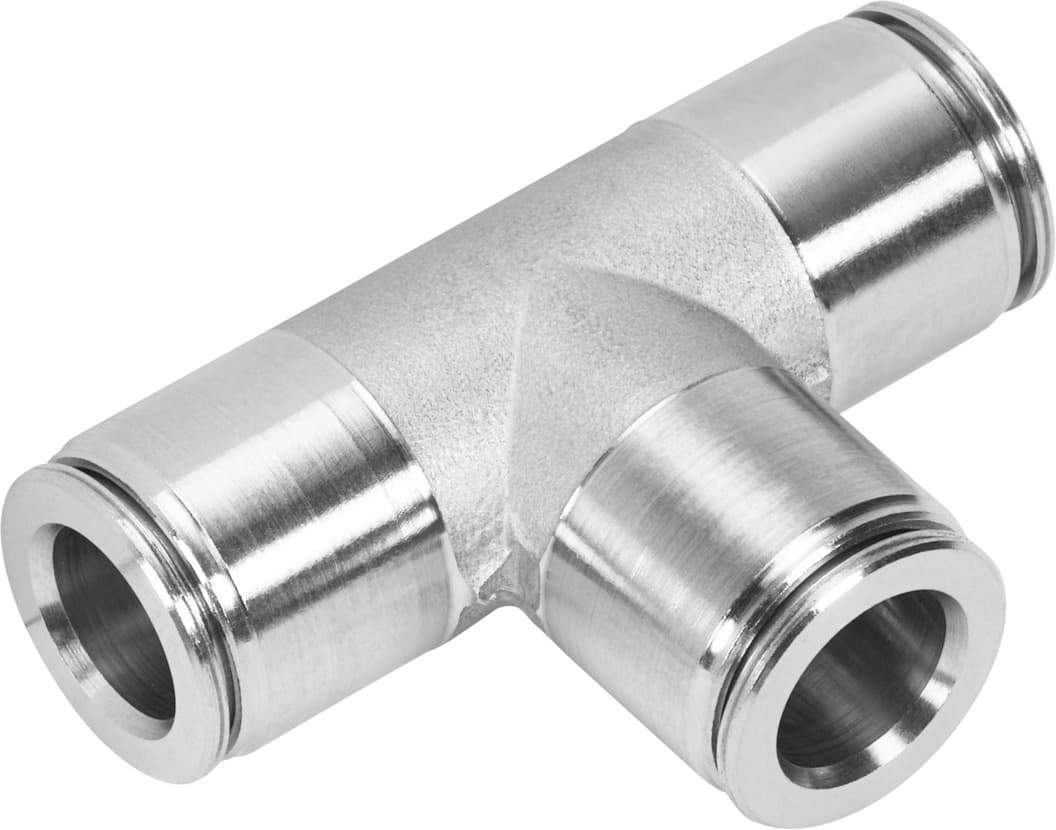

crqst-5/32t-u
Selling Points
- 1CRC 4 rating ensures maximum resistance to aggressive acids and alkalis.
- 2Meets LABS (PWIS) conformity and VDMA24364 zone III standards.
- 3Operates at -20 °C to 150 °C ambient temperature.
- 4Housing and release ring made from high-alloy stainless steel.
- 5Push-pull principle for quick and secure connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.505mm |
Mounting position | Any | Design | T-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
Product weight | 15.989g | Usable connector cables | PFAN |
Pneumatic connection 1 | For pneumatic tubing outside diameter 5/32" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" |
Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 565350 |
Specifications may be subject to change without notice
