Product Model
dpa-63-16-crvzs10
Selling Points

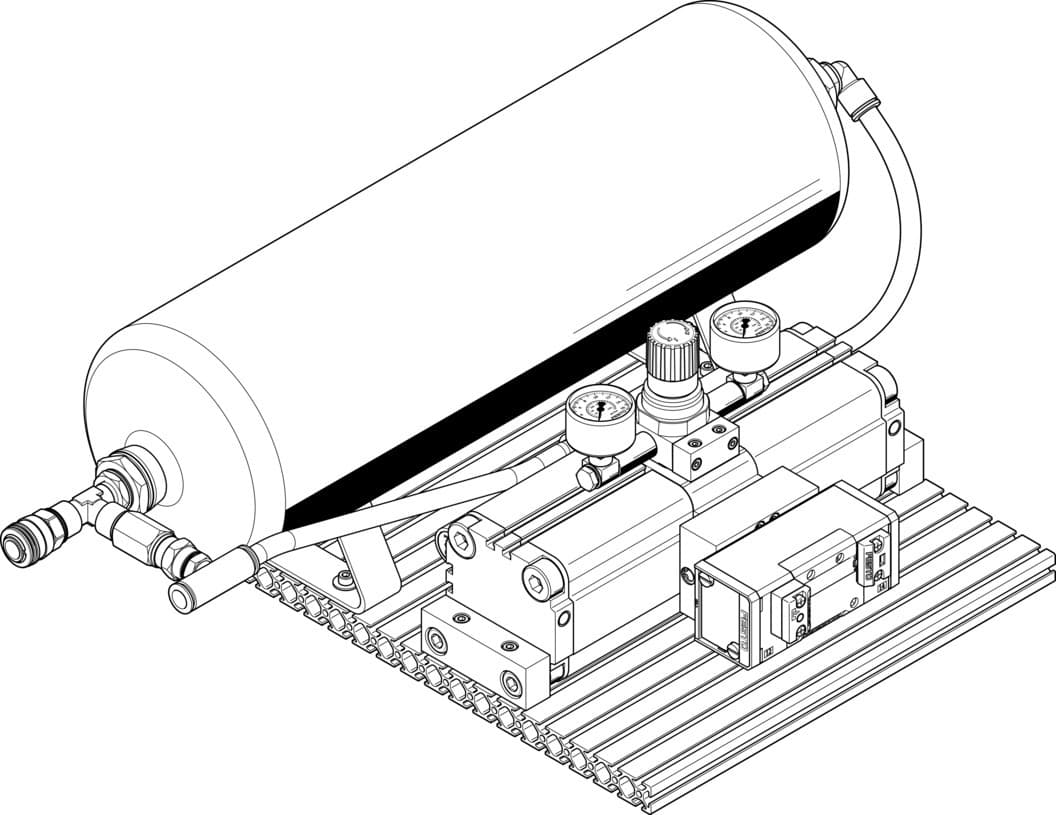

- 1The Festo DPA-63-16-CRVZS10 is a twin-piston pressure booster that enhances compressed air quality, ensuring reliable operation in various industrial settings.
- 2This pressure booster offers an output pressure range of 4 to 16 bar, making it suitable for a wide range of applications requiring precise air pressure regulation.
- 3Built with high-alloyed stainless steel for the compressed air storage, this unit is corrosion-resistant and can operate in temperatures between 5°C and 60°C.
- 4The DPA-63-16-CRVZS10 features a downward condensate drain and comes with a pressure gauge, making installation and monitoring straightforward.
- 5Certified to EU pressure vessel directive standards, this product ensures compliance with safety regulations and provides peace of mind for users.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 63 mm | Volume | 10 l |
Mounting position | Condensate drain downwards | Structural design | Twin-piston pressure intensifier with air reservoir with pressure gauge with non-return valve |
Symbol | 00991432 | Pressure gauge | with pressure gauge |
Output pressure 2 | 58psi 232psi | Outlet pressure 2 | 4bar 16bar |
Operating pressure | 29psi 116psi | Pressure regulation range MPa | 0.4MPa 1.6MPa |
Pressure regulation range | 4bar 16bar | Pressure regulation range psi | 58psi 232psi |
Inlet pressure 1 | 2bar 8bar | Inlet pressure 1 MPa | 0.2MPa 0.8MPa |
Inlet pressure 1 psi | 29psi 116psi | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
Ambient temperature | 5°C 60°C | Max. tightening torque for condensate drain | 27Nm |
Product weight | 16000g | Type of mounting | With slot nuts |
Pneumatic connection 1 | QS-12 | Pneumatic connection 2 | KD4 |
Pneumatic connection 3 | Pneumatic muffler | Note on materials | RoHS-compliant |
Air reservoir material | High-alloy stainless steel | Manufacturer ID | 552933 |
Specifications may be subject to change without notice
