Product Model
dpdm-10-10-p-pa
Selling Points

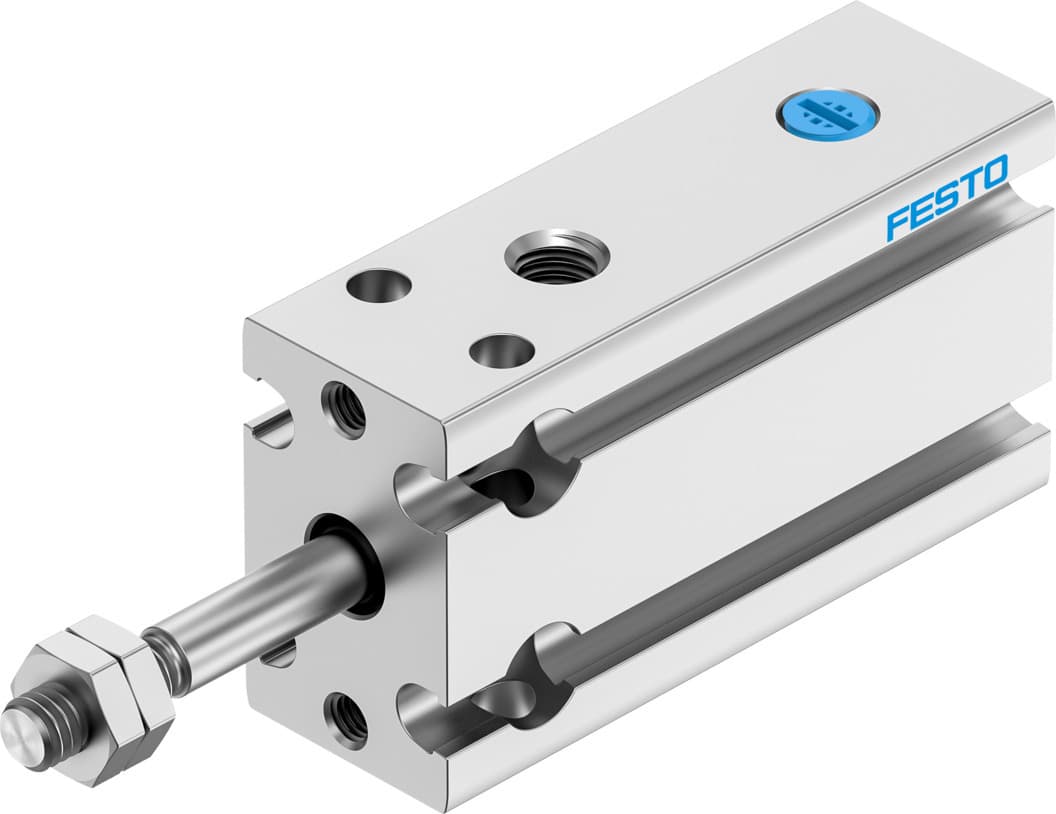

- 1The Festo DPDM-10-10-PA compact air cylinder features a 10 mm stroke and 10 mm piston diameter, making it perfect for applications requiring precise movement.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The DPDM-10-10-PA offers double-acting functionality, allowing for both pushing and pulling operations, enhancing versatility in your pneumatic system.
- 4With a mounting position that can be set to any orientation, this cylinder provides flexibility in installation, making it suitable for a wide range of applications.
- 5Designed with high-alloy stainless steel piston rods and RoHS-compliant materials, the DPDM-10-10-PA ensures durability and compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 31N | Theoretical force at 6 bar, advancing | 31N |
Moving mass at 0?mm stroke | 7g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 30g | Additional weight per 10?mm stroke | 7.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4832171 |
Specifications may be subject to change without notice
