Product Model

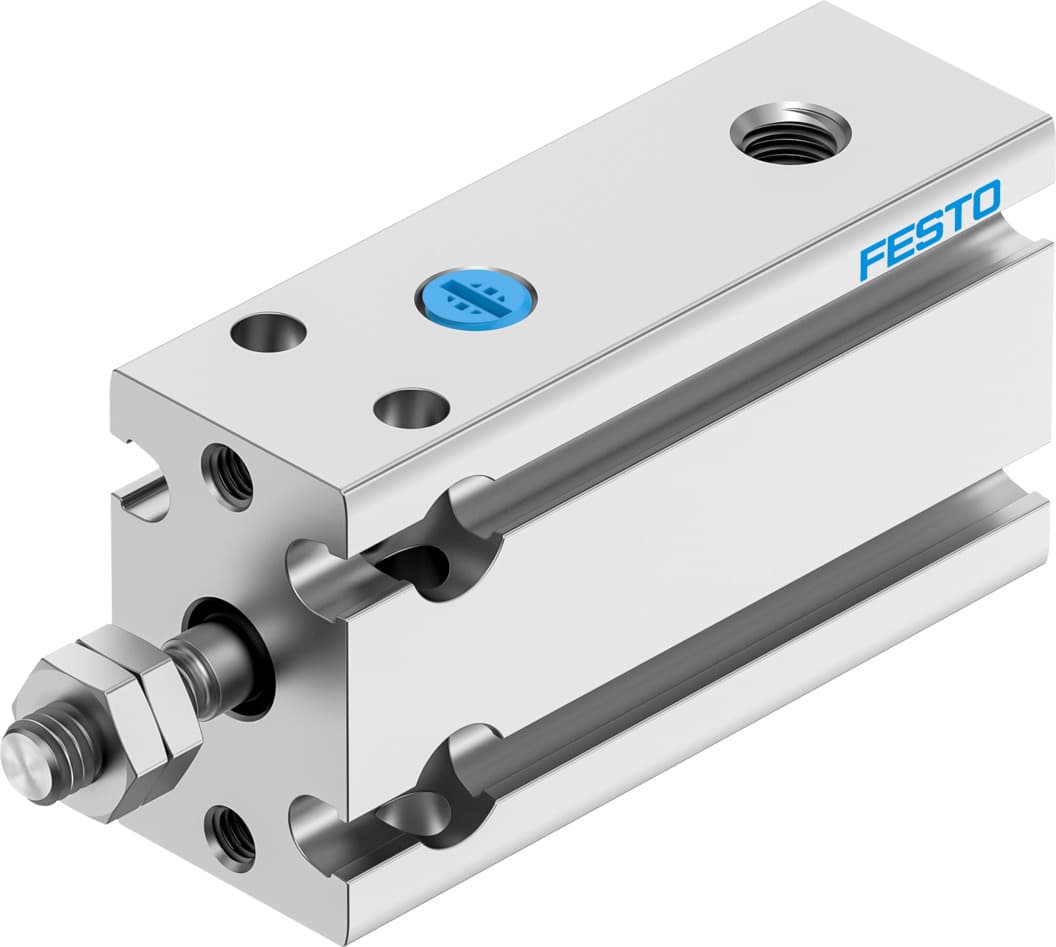

dpdm-10-10-s-pa
Selling Points
- 1The DPDM-10-10-S-PA comes equipped with elastic cushioning rings at both ends, ensuring smooth operation and reducing wear on the cylinder.
- 2This compact cylinder offers any mounting position, providing flexibility in installation and integration into various systems.
- 3With a corrosion resistance class of 1, the DPDM-10-10-S-PA is designed to withstand low corrosion stress, making it suitable for a wide range of environments.
- 4Capable of operating under pressures from 2 to 8 bar, this cylinder is ideal for applications requiring precise control and force.
- 5Equipped with proximity sensors for position detection, the DPDM-10-10-S-PA ensures accurate and reliable operation in precision applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 38N | Theoretical force at 6 bar, advancing | 38N |
Moving mass at 0?mm stroke | 6.8g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 30.5g | Additional weight per 10?mm stroke | 7.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4832117 |
