Product Model
dpdm-10-15-pa
Selling Points

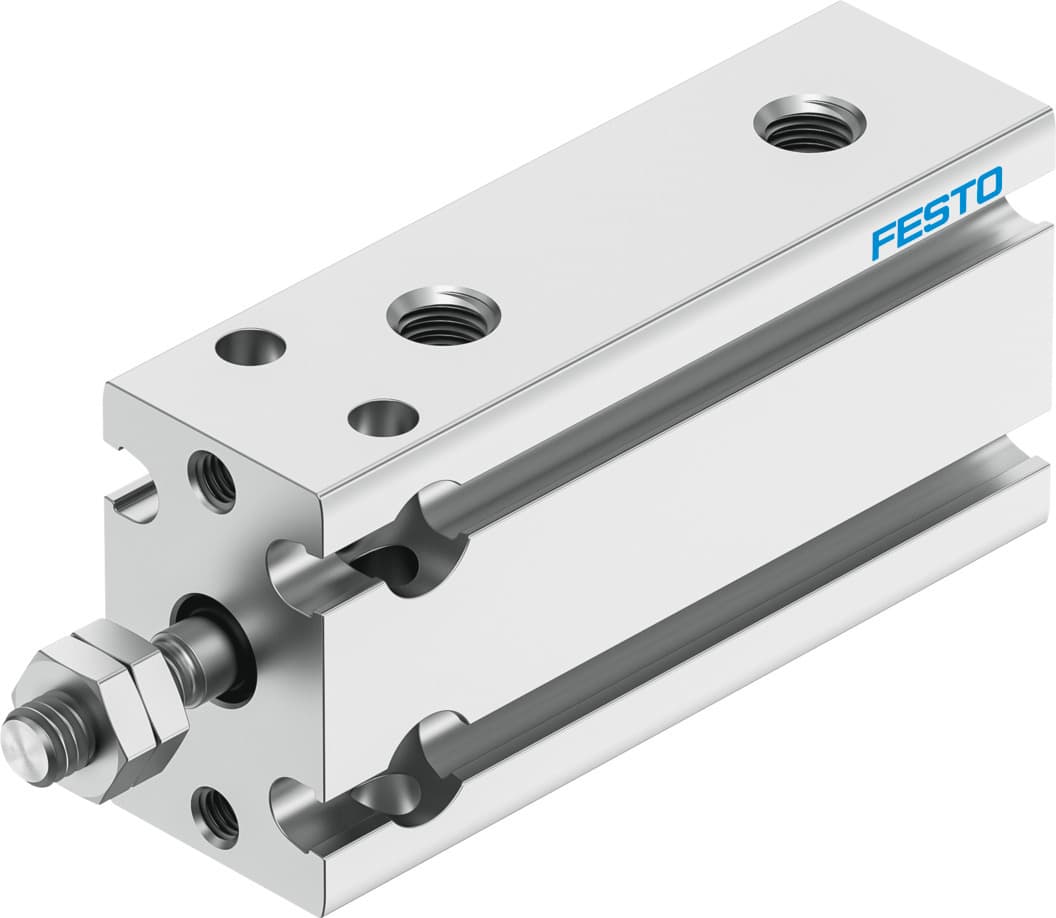

- 1The Festo DPDM-10-15-PA compact cylinder features a 10 mm piston diameter and a 15 mm stroke, making it suitable for a wide range of industrial applications.
- 2Equipped with elastic silencer rings or plates for effective cushioning, ensuring smooth operation and reducing noise.
- 3The cylinder operates at pressures between 1.5 to 8 bar, compatible with compressed air to ISO 8573-1:2010 [7:4:4], and supports lubricated operation for enhanced performance.
- 4Constructed from high-quality materials, including aluminum wrought alloy for the housing, high-alloy stainless steel for the piston rod, and NBR/TPE-U(PU) seals, ensuring corrosion resistance and durability.
- 5Designed for double-acting operation with arbitrary mounting positions, making it versatile for various installation scenarios and position detection via proximity switch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 47N | Theoretical force at 6 bar, retracting | 40N |
Theoretical force at 6 bar, advancing | 47N | Moving mass at 0?mm stroke | 6.3g |
Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 30g |
Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4831870 |
Specifications may be subject to change without notice
