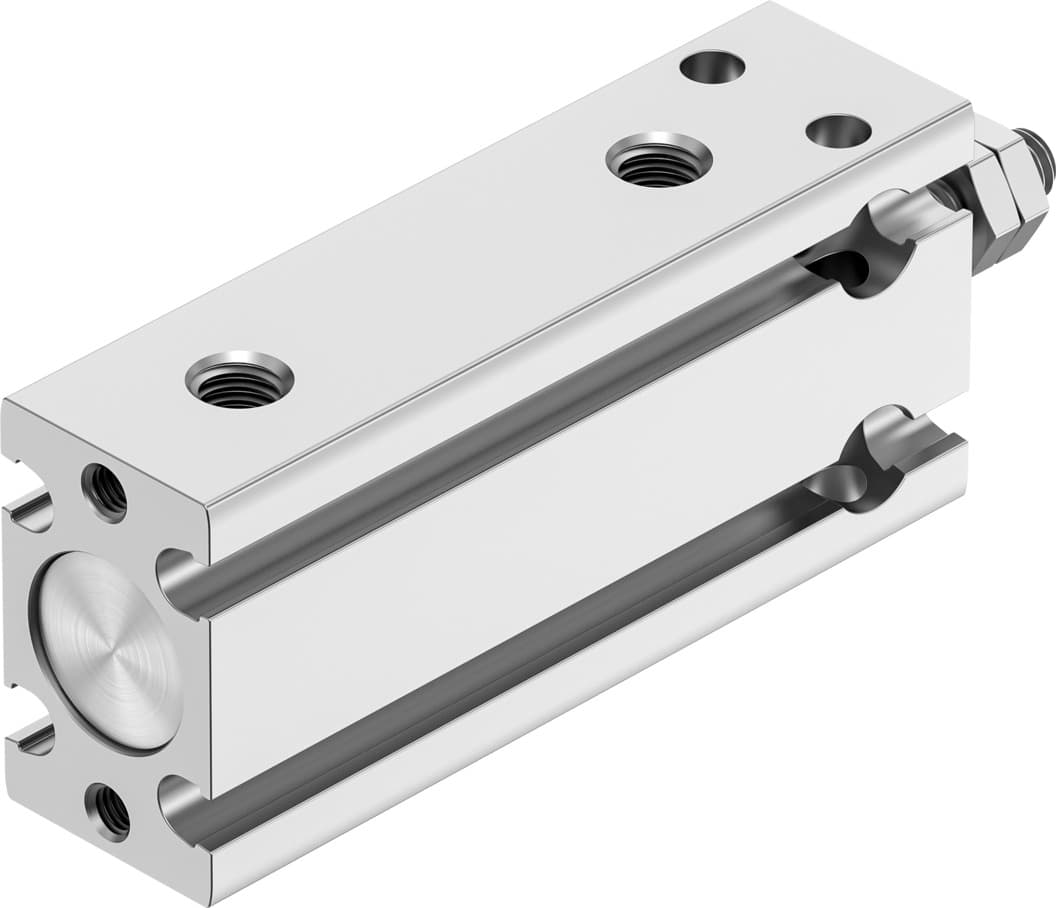

Festo DPDM-10-20-PA Compact Pneumatic Cylinder - High-Quality Actuation Solutions

Selling Points

1The DPDM-10-20-PA is a compact pneumatic cylinder, perfect for space-constrained applications.
2Equipped with flexible cushioning rings at both ends for smooth operation and reduced wear.
3Designed for double-acting operation, allowing for both extension and retraction of the piston rod.
4Can be mounted in any position, offering flexibility in installation.
5Constructed from high-alloyed stainless steel piston rods and aluminum wrought alloy housing, ensuring durability and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	10 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991217
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar	47N	Theoretical force at 6 bar, retracting	40N
Theoretical force at 6 bar, advancing	47N	Moving mass at 0?mm stroke	6.3g
Additional moving mass per 10?mm stroke	1g	Basic weight with 0?mm stroke	30g
Additional weight per 10?mm stroke	7.5g	Type of mounting	Optionally: With through-hole With internal thread
Pneumatic connection	M5	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	4831872
