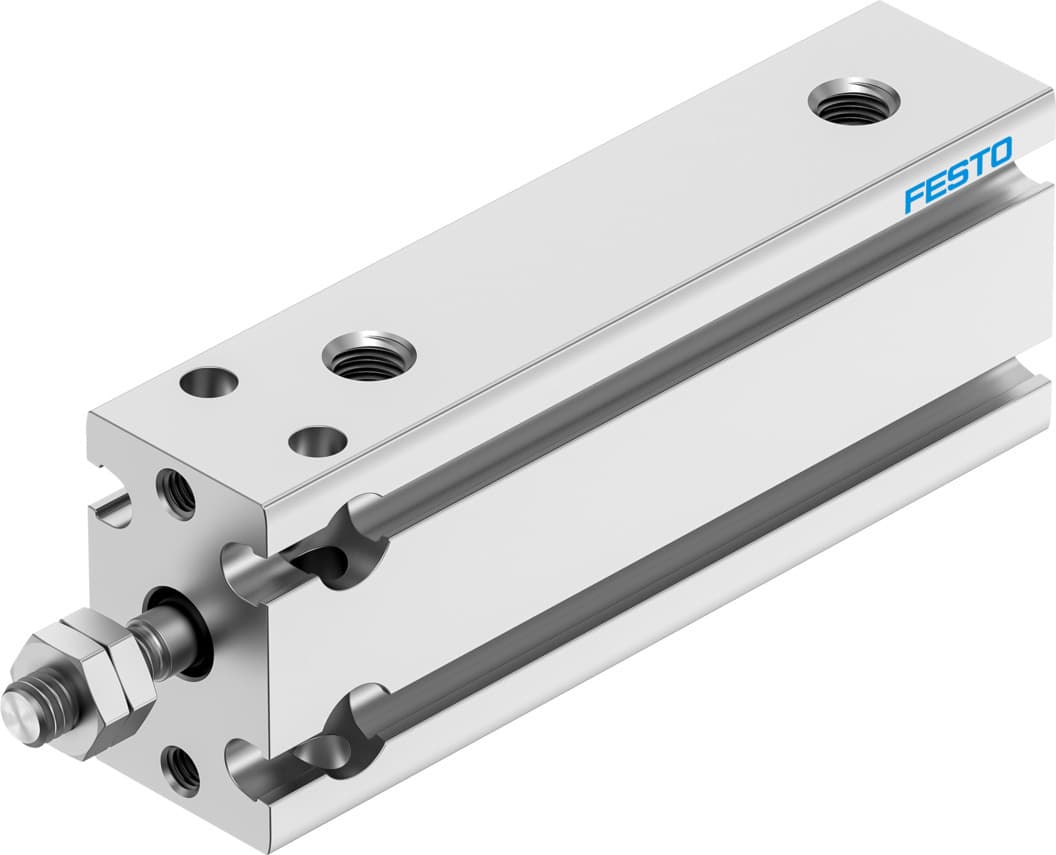

Product Model
dpdm-10-30-pa
Selling Points
- 1The DPDM-10-30-PA features a robust design with anodized wrought aluminum alloy housing and high-alloy stainless steel piston rod, ensuring durability and reliability.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3The cylinder can be mounted in any position, offering flexibility in installation and integration into various systems.
- 4Designed for double-acting operation, the DPDM-10-30-PA can be used in both advancing and retracting strokes, enhancing its versatility in industrial applications.
- 5With a corrosion resistance class of CRC 1 - Low corrosion stress, this cylinder is suitable for use in environments with moderate corrosive conditions, ensuring long-term performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 47N | Theoretical force at 6 bar, retracting | 40N |
Theoretical force at 6 bar, advancing | 47N | Moving mass at 0?mm stroke | 6.3g |
Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 30g |
Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4831874 |
Specifications may be subject to change without notice
