Product Model
dpdm-10-5-p-pa
Selling Points

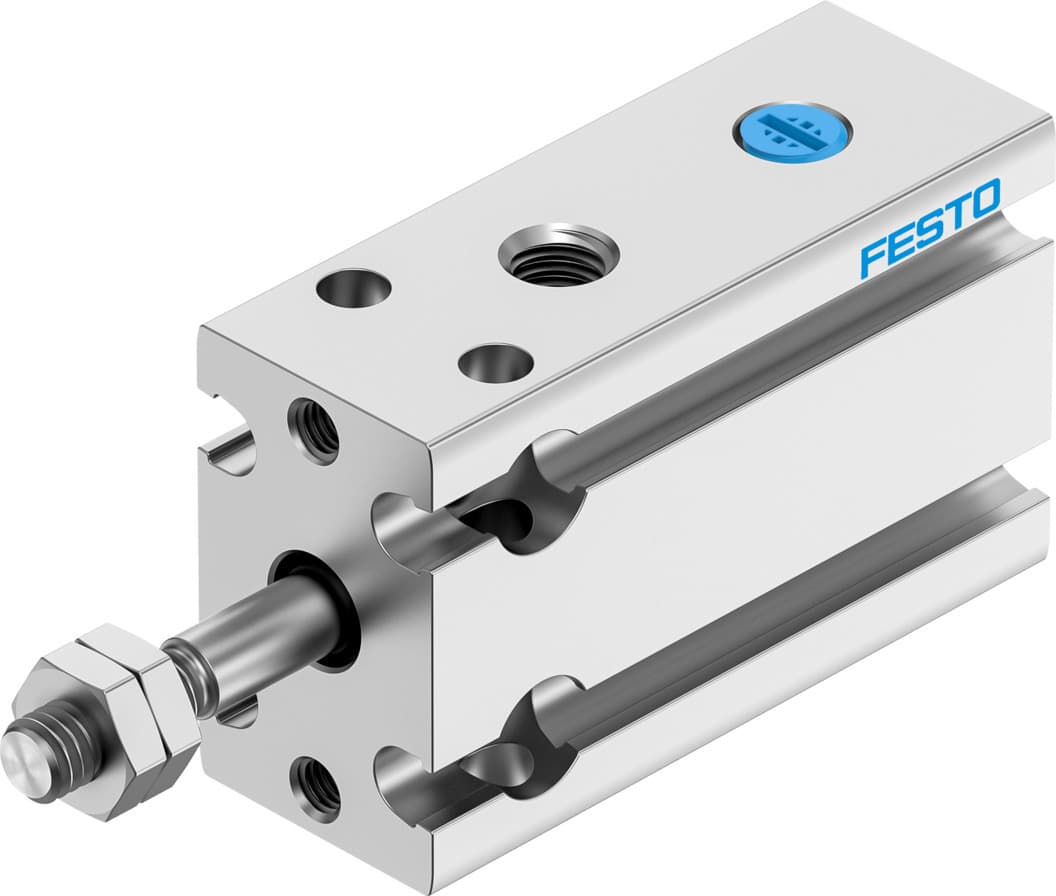

- 1The DPDM-10-5-P-PA operates with a stroke of 5 mm and a piston diameter of 10 mm, offering precise and reliable double-acting performance.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the components.
- 3The DPDM-10-5-P-PA can be mounted in any position, providing flexibility in various application settings.
- 4Made from RoHS-compliant materials, including anodized wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring low corrosion stress and durability.
- 5Compatible with proximity switches for precise position detection, enhancing the overall accuracy and control of the system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 31N | Theoretical force at 6 bar, advancing | 31N |
Moving mass at 0?mm stroke | 7g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 30g | Additional weight per 10?mm stroke | 7.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4832170 |
