Product Model
dpdm-16-10-p-pa
Selling Points

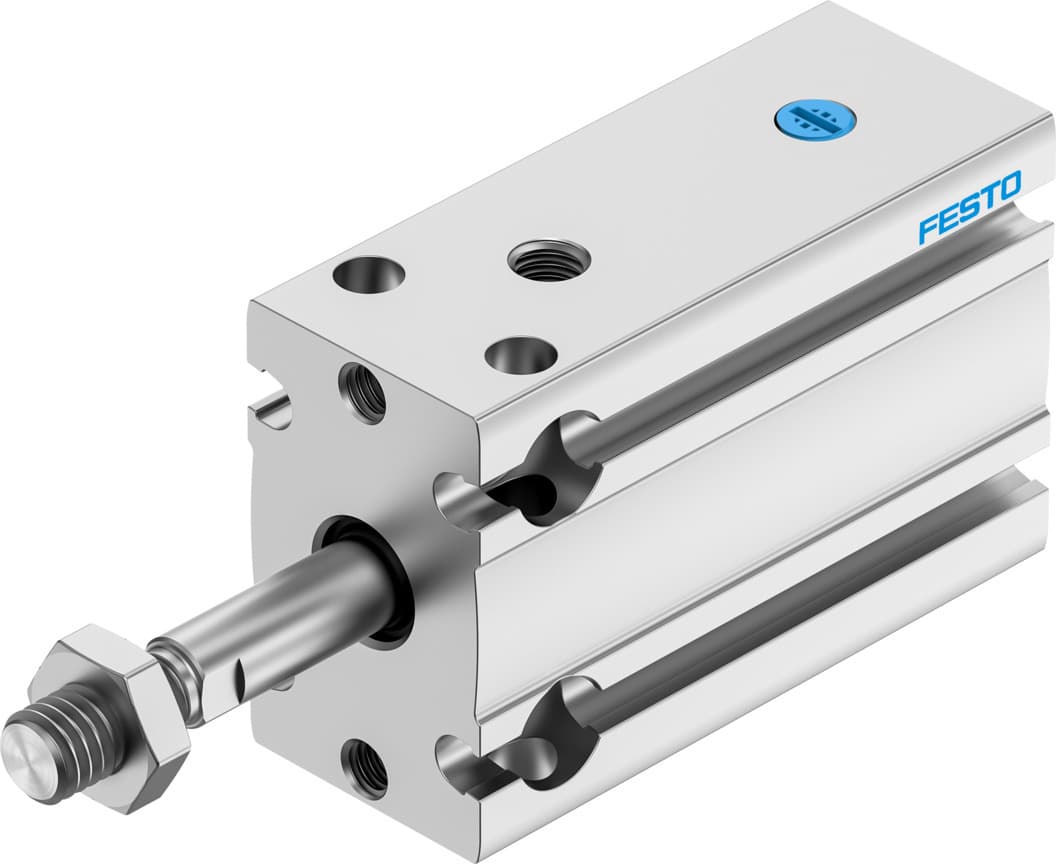

- 1The Festo DPDM-16-10-PA compact air cylinder is engineered for precise linear motion in pneumatic systems, ensuring reliable performance in various industrial applications.
- 2This cylinder supports double-acting operation, allowing for both advancing and retracting strokes, enhancing the efficiency of your pneumatic system.
- 3Equipped with elastic cushioning rings/plates at both ends, the DPDM-16-10-PA reduces wear and tear, ensuring smooth operation and extending the lifespan of the cylinder.
- 4Made from high-quality materials, including anodized wrought aluminum alloy housing and high-alloy stainless steel piston rod, this cylinder offers robustness and durability.
- 5The DPDM-16-10-PA can be mounted either with a through-hole or via a female thread, providing flexibility in installation and integration into your pneumatic setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 93N | Theoretical force at 6 bar, advancing | 93N |
Moving mass at 0?mm stroke | 18g | Additional moving mass per 10?mm stroke | 2.3g |
Basic weight with 0?mm stroke | 66g | Additional weight per 10?mm stroke | 13g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4833322 |
Specifications may be subject to change without notice
