Product Model
dpdm-16-10-s-pa
Selling Points

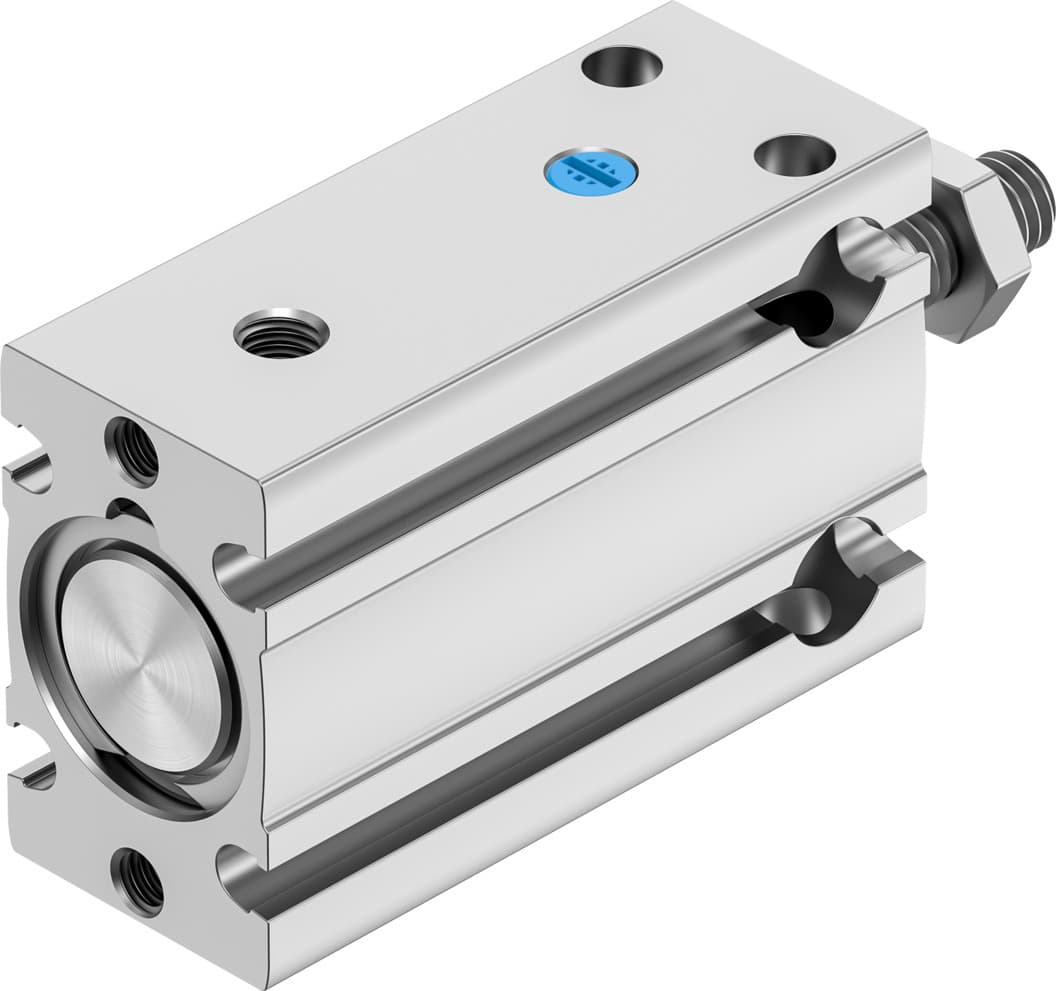

- 1The Festo DPDM-16-10-S-PA compact cylinder offers a stroke of 10 mm and a piston diameter of 16 mm, ensuring precise and reliable operation in various pneumatic applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3The DPDM-16-10-S-PA allows for optional mounting positions, offering flexibility in installation and integration into different systems.
- 4With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring durability in harsh environments.
- 5Operating within a temperature range of -10 °C to 80 °C and compatible with compressed air to ISO 8573-1:2010, this cylinder is suitable for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 100N | Theoretical force at 6 bar, advancing | 100N |
Moving mass at 0?mm stroke | 18g | Additional moving mass per 10?mm stroke | 2.3g |
Basic weight with 0?mm stroke | 66g | Additional weight per 10?mm stroke | 13g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4833273 |
Specifications may be subject to change without notice
