Product Model
dpdm-16-15-pa
Selling Points

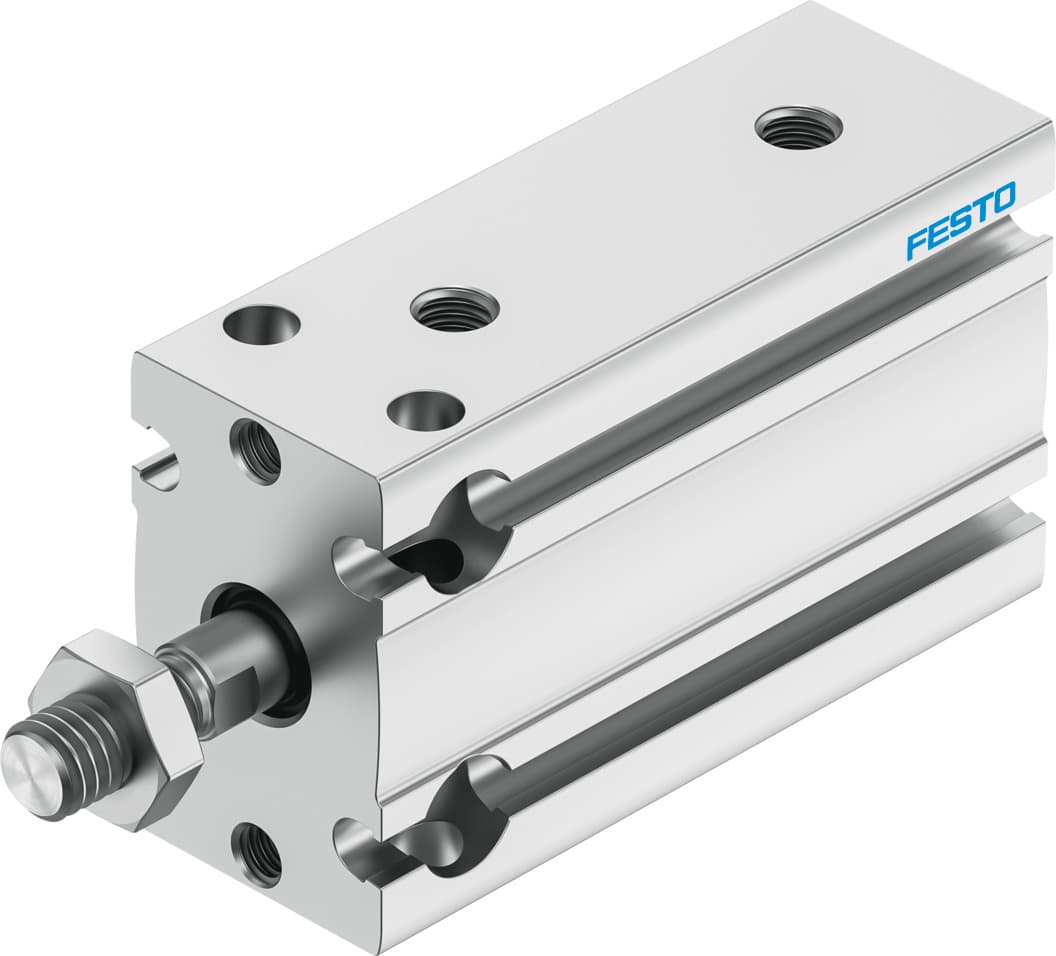

- 1The Festo DPDM-16-15-PA compact cylinder offers a 16mm piston diameter and a 15mm stroke, making it suitable for a variety of industrial applications.
- 2This double-acting cylinder features elastic cushioning rings at both ends, ensuring smooth operation and reducing wear on the components.
- 3The DPDM-16-15-PA is designed for flexible mounting options, allowing for easy integration into different systems and configurations.
- 4With a high-alloy stainless steel piston rod and anodized wrought aluminum alloy housing, this cylinder provides excellent corrosion resistance and durability.
- 5The Festo DPDM-16-15-PA operates within a wide pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) using compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 121N | Theoretical force at 6 bar, retracting | 104N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 18g |
Additional moving mass per 10?mm stroke | 2.3g | Basic weight with 0?mm stroke | 66g |
Additional weight per 10?mm stroke | 13g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833187 |
Specifications may be subject to change without notice
