Product Model
dpdm-16-15-p-pa
Selling Points

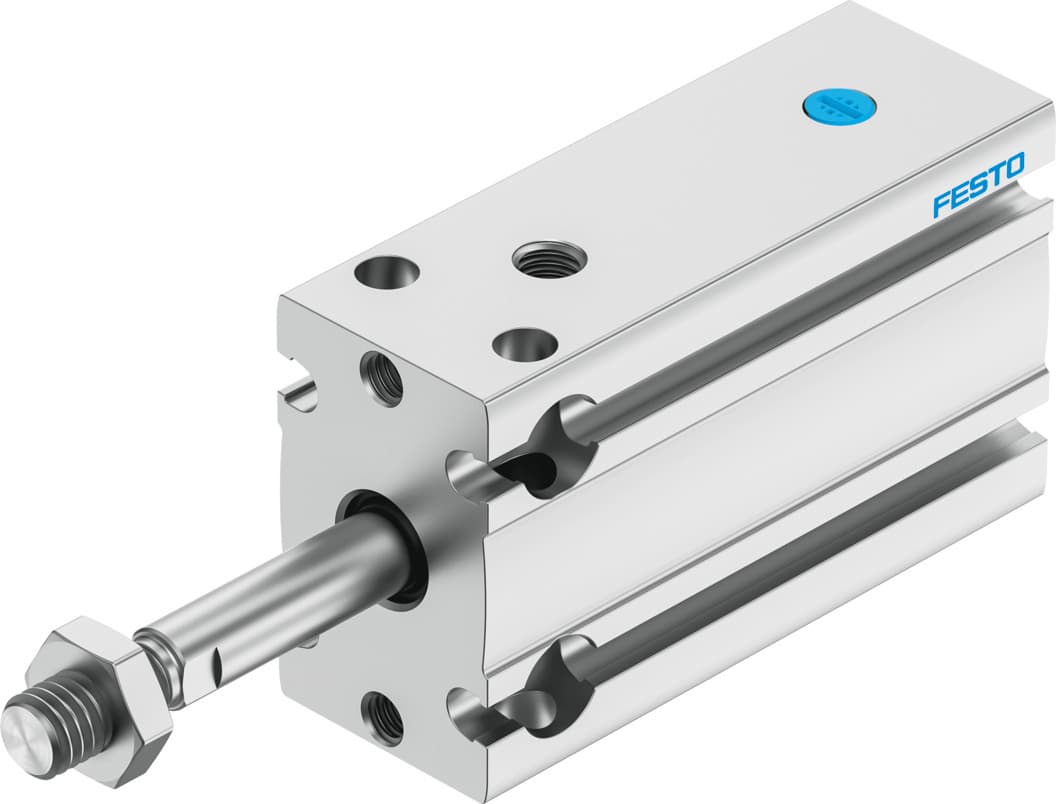

- 1The Festo DPDM-16-15-P-PA compact air cylinder boasts a stroke length of 15 mm and a piston diameter of 16 mm, making it versatile for a wide range of applications.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The high-alloy stainless steel piston rod provides exceptional durability and resistance to corrosion, ensuring long-lasting performance.
- 4Compatible with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar).
- 5Designed for single-acting pulling action, the DPDM-16-15-P-PA is ideal for applications requiring precise and reliable movement, such as in manufacturing and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 93N | Theoretical force at 6 bar, advancing | 93N |
Moving mass at 0?mm stroke | 18g | Additional moving mass per 10?mm stroke | 2.3g |
Basic weight with 0?mm stroke | 66g | Additional weight per 10?mm stroke | 13g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4833323 |
Specifications may be subject to change without notice
