Product Model

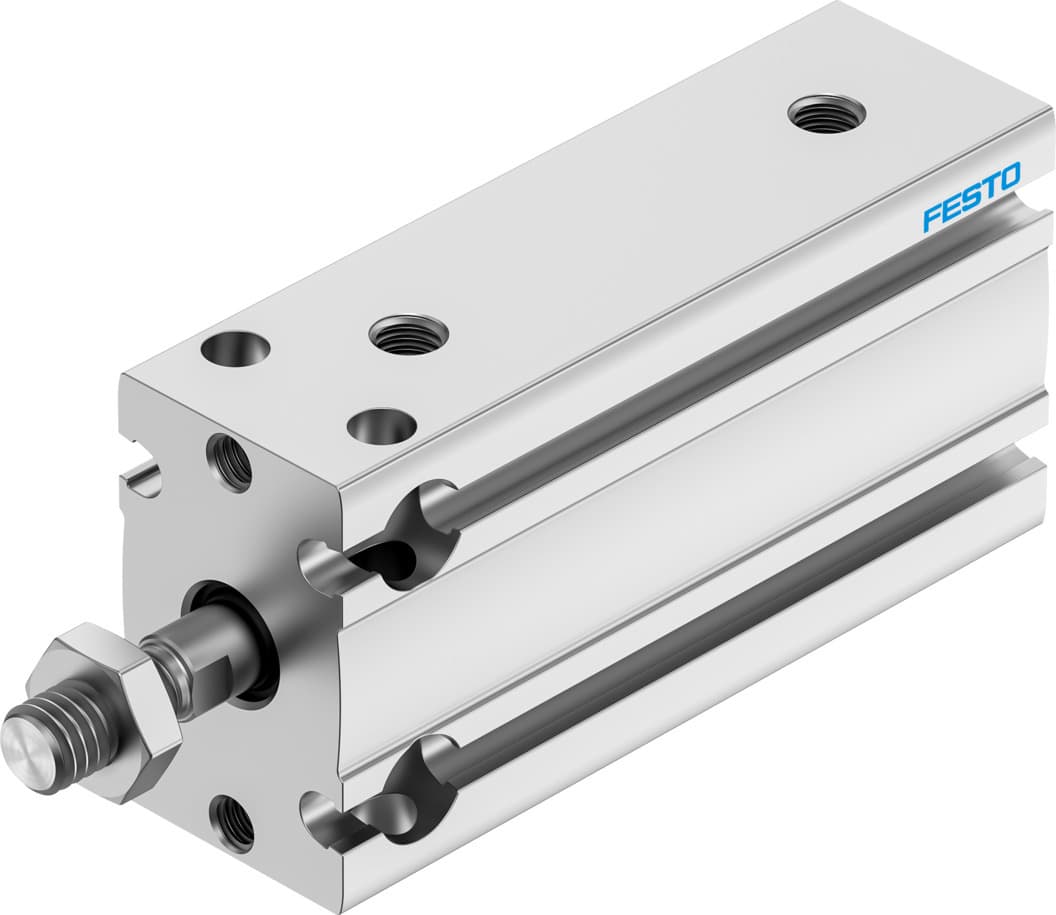

dpdm-16-25-pa
Selling Points
- 1The DPDM-16-25-PA offers a compact and versatile design, making it suitable for a wide range of applications in various industries.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing its versatility and efficiency.
- 3Equipped with elastic cushioning rings/plates at both ends, it provides smooth operation and reduces wear on the cylinder.
- 4The DPDM-16-25-PA can operate under pressures ranging from 1.5 to 8 bar, making it suitable for demanding applications.
- 5Featuring position detection via proximity switch, this cylinder ensures precise control and accurate positioning in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 121N | Theoretical force at 6 bar, retracting | 104N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 18g |
Additional moving mass per 10?mm stroke | 2.3g | Basic weight with 0?mm stroke | 66g |
Additional weight per 10?mm stroke | 13g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833189 |
Specifications may be subject to change without notice
