Product Model

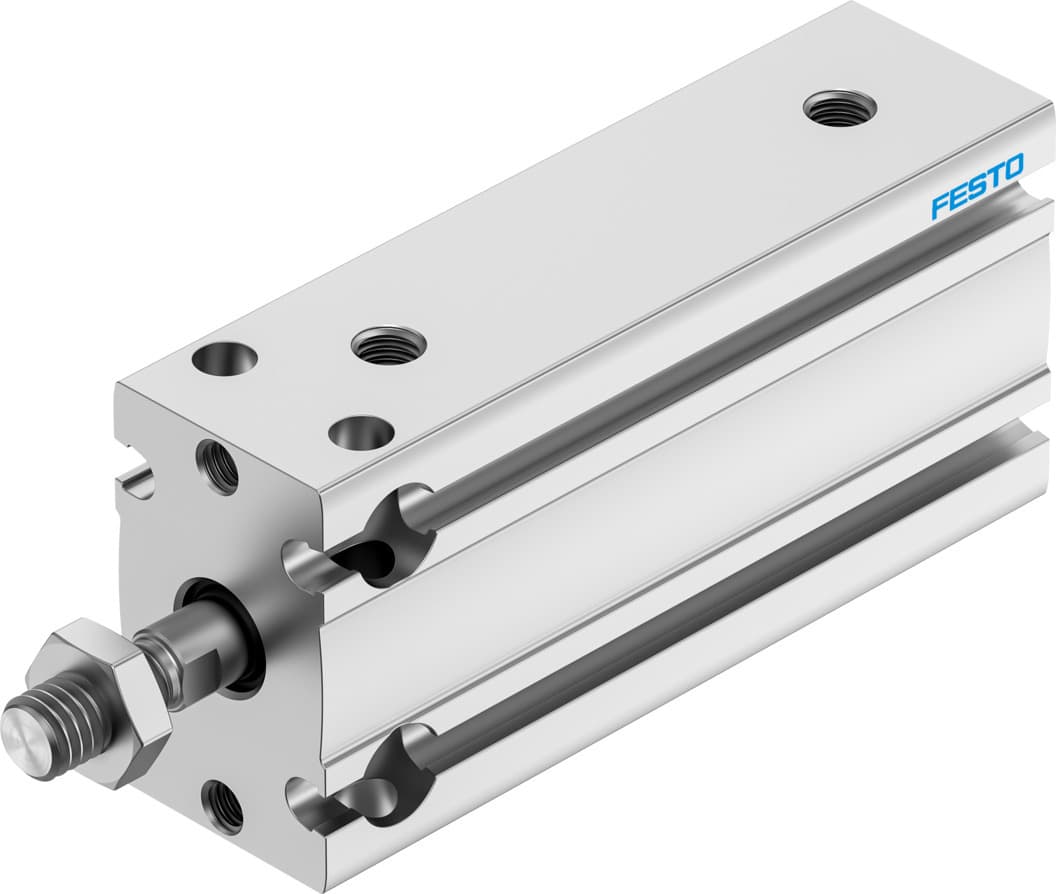

dpdm-16-30-pa
Selling Points
- 1The Festo DPDM-16-30-PA features a double-acting design with elastic cushioning rings/plates at both ends, ensuring smooth and reliable operation in linear motion applications.
- 2With a stroke of 30 mm and a piston diameter of 16 mm, this compact cylinder is versatile and can be mounted in any position, making it suitable for various industrial settings.
- 3The DPDM-16-30-PA operates with compressed air to ISO 8573-1:2010 [7:4:4] and supports lubricated operation, enhancing its performance and longevity in demanding environments.
- 4This cylinder boasts a corrosion resistance class of CRC 2, moderate corrosion stress, and meets cleanroom class 6 according to ISO 14644-1, ensuring it can operate effectively in controlled environments.
- 5Made from RoHS-compliant materials, including wrought aluminum alloy for the cover, TPE-U(PU) for seals, and high-alloy stainless steel for the piston rod, this cylinder is built to last with a basic weight of 75 g and additional weight per 10 mm stroke of 13.5 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 121N | Theoretical force at 6 bar, retracting | 104N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 18g |
Additional moving mass per 10?mm stroke | 2.3g | Basic weight with 0?mm stroke | 66g |
Additional weight per 10?mm stroke | 13g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833190 |
Specifications may be subject to change without notice
