Product Model

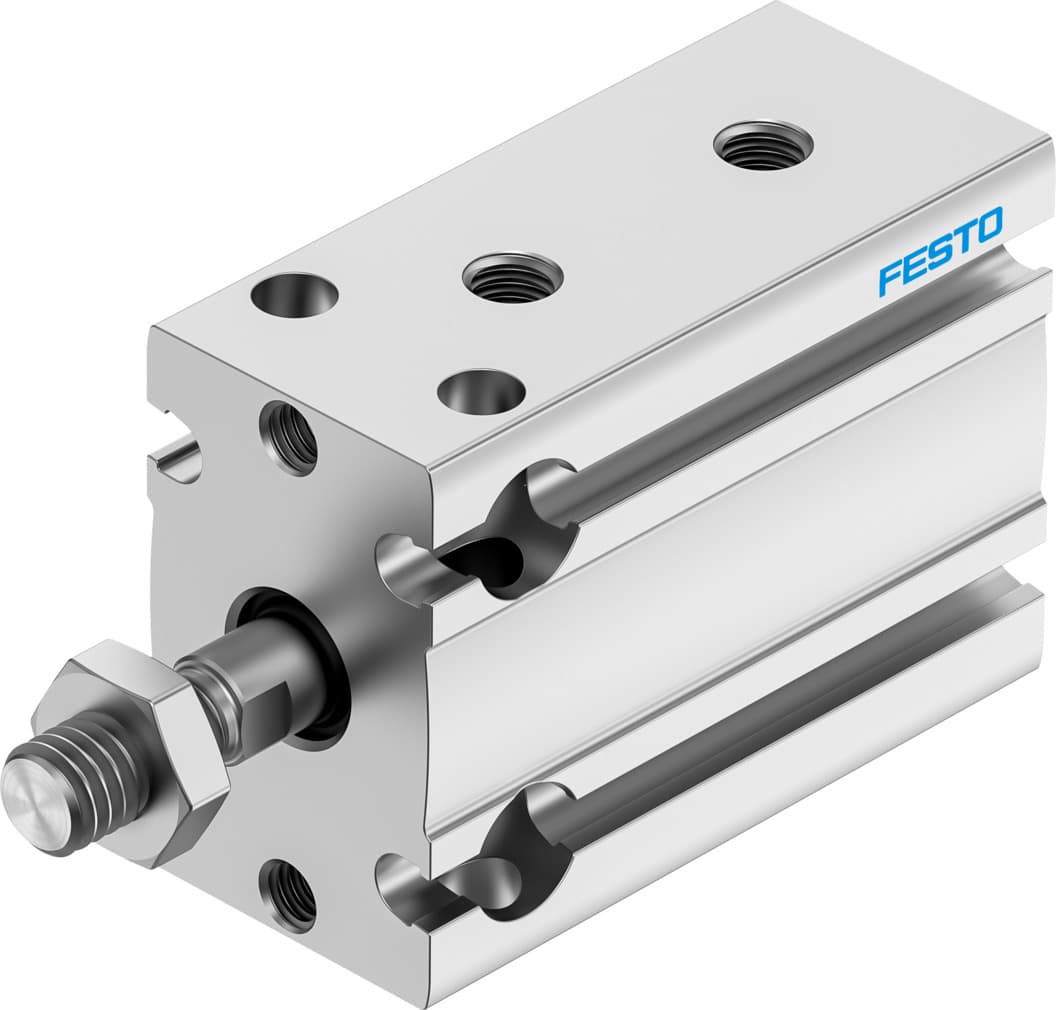

dpdm-16-5-pa
Selling Points
- 1The DPDM-16-5-PA offers a compact design with a stroke of 5 mm, making it perfect for space-constrained applications.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3Designed for double-acting operation, the DPDM-16-5-PA can be used in both extending and retracting modes, providing versatility in various applications.
- 4With a corrosion resistance classification of CRC 2, this cylinder can withstand moderate corrosion stress, ensuring durability in harsh environments.
- 5The DPDM-16-5-PA can be mounted in any position, offering flexibility in installation and integration into different systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 121N | Theoretical force at 6 bar, retracting | 104N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 18g |
Additional moving mass per 10?mm stroke | 2.3g | Basic weight with 0?mm stroke | 66g |
Additional weight per 10?mm stroke | 13g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833185 |
Specifications may be subject to change without notice
