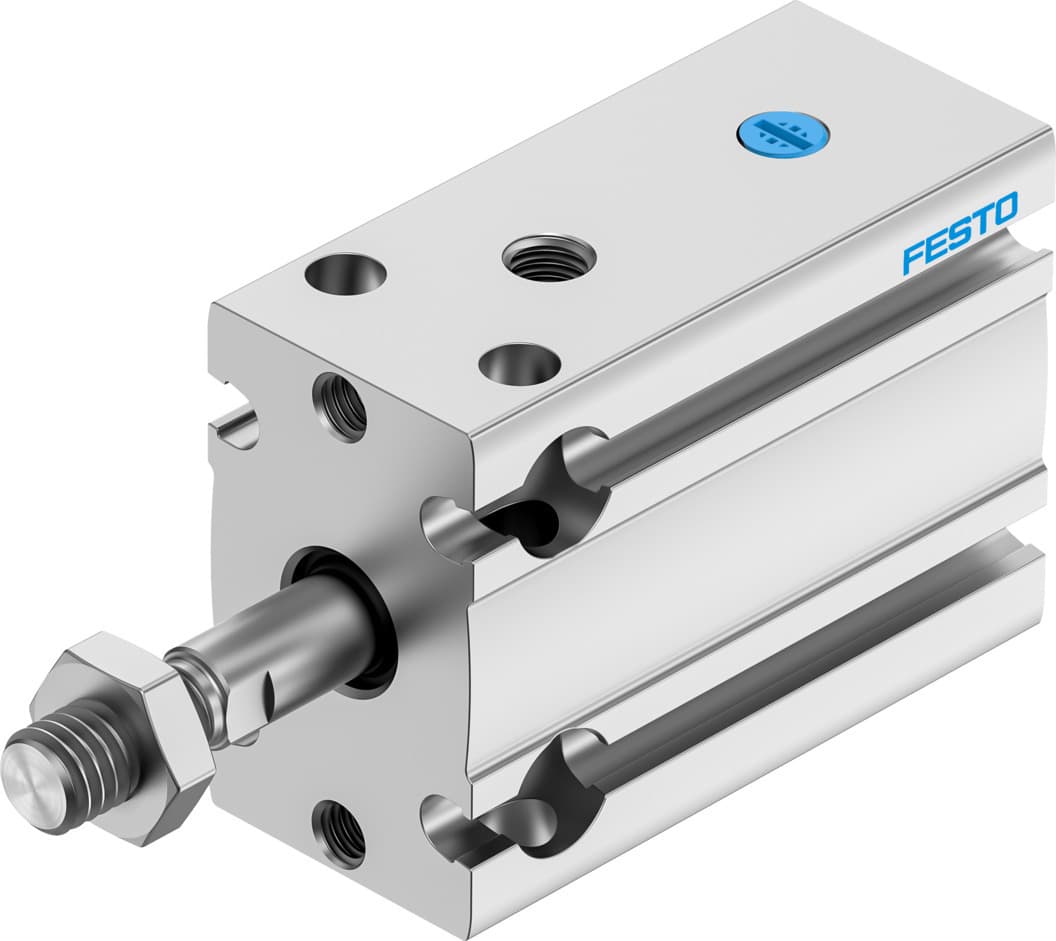

Festo DPDM-16-5-P-PA Pneumatic Compact Cylinder - High-Quality Industrial Solutions

Selling Points

1The Festo DPDM-16-5-P-PA features a compact design, making it ideal for space-constrained industrial applications.
2This pneumatic cylinder operates double-acting, allowing for both extension and retraction with compressed air.
3Equipped with elastic cushioning rings/pads at both ends, ensuring smooth and controlled movement.
4Designed for proximity sensor integration, enhancing precision and automation in industrial processes.
5Classified as CRC 2, offering moderate corrosion resistance, suitable for various industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Single-acting Pulling	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991850
Variants	Piston rod at one end	Operating pressure	2bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar, retracting	93N	Theoretical force at 6 bar, advancing	93N
Moving mass at 0?mm stroke	18g	Additional moving mass per 10?mm stroke	2.3g
Basic weight with 0?mm stroke	66g	Additional weight per 10?mm stroke	13g
Type of mounting	Optionally: With through-hole With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4833321

Specifications may be subject to change without notice
