Product Model
dpdm-25-50-pa
Selling Points

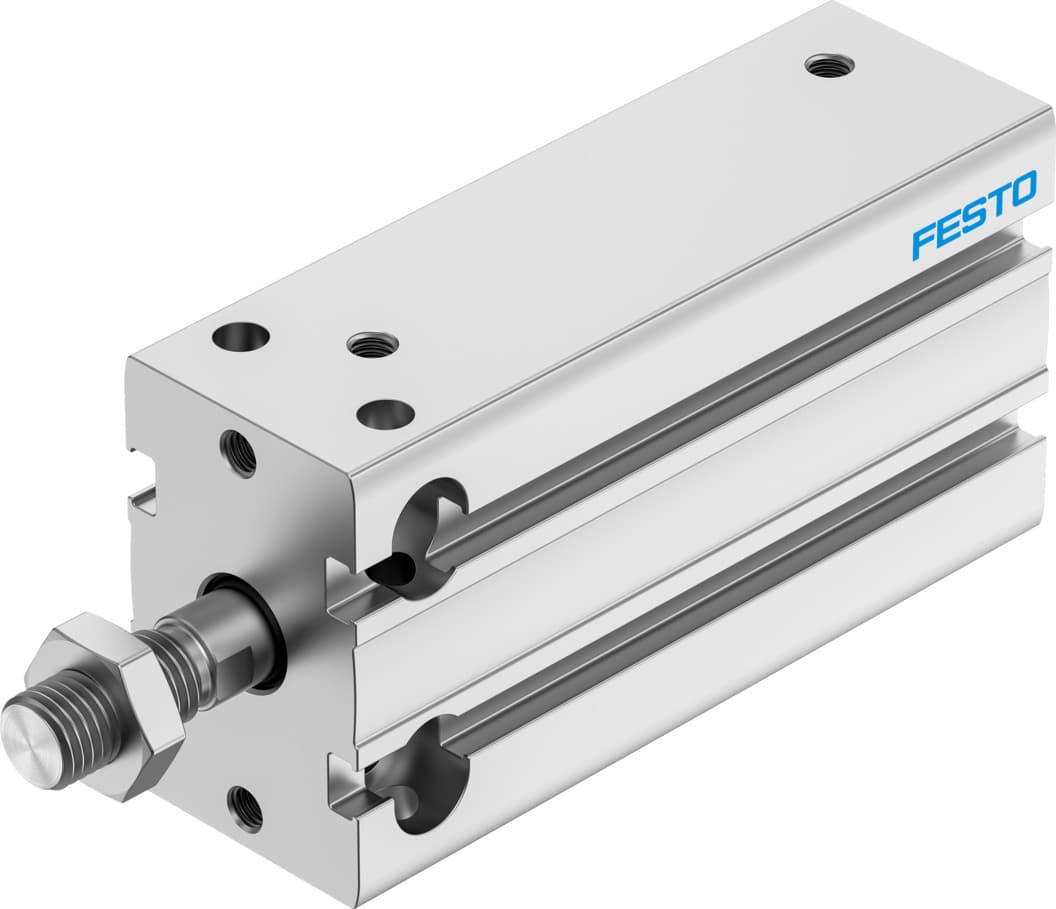

- 1The Festo DPDM-25-50-PA compact air cylinder is designed for precise movements, offering a stroke of 50 mm and a piston diameter of 25 mm.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear.
- 3Capable of both advancing and retracting, the DPDM-25-50-PA provides versatile functionality in various industrial applications.
- 4With a corrosion resistance class of CRC 2 and LABS (PWIS) conformity, this cylinder is suitable for environments with moderate corrosion stress.
- 5Classified as Class 6 according to ISO 14644-1, the DPDM-25-50-PA is ideal for cleanroom environments, ensuring high cleanliness standards are maintained.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 295N | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 58g |
Additional moving mass per 10?mm stroke | 6.5g | Basic weight with 0?mm stroke | 205g |
Additional weight per 10?mm stroke | 33.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4829577 |
Specifications may be subject to change without notice
