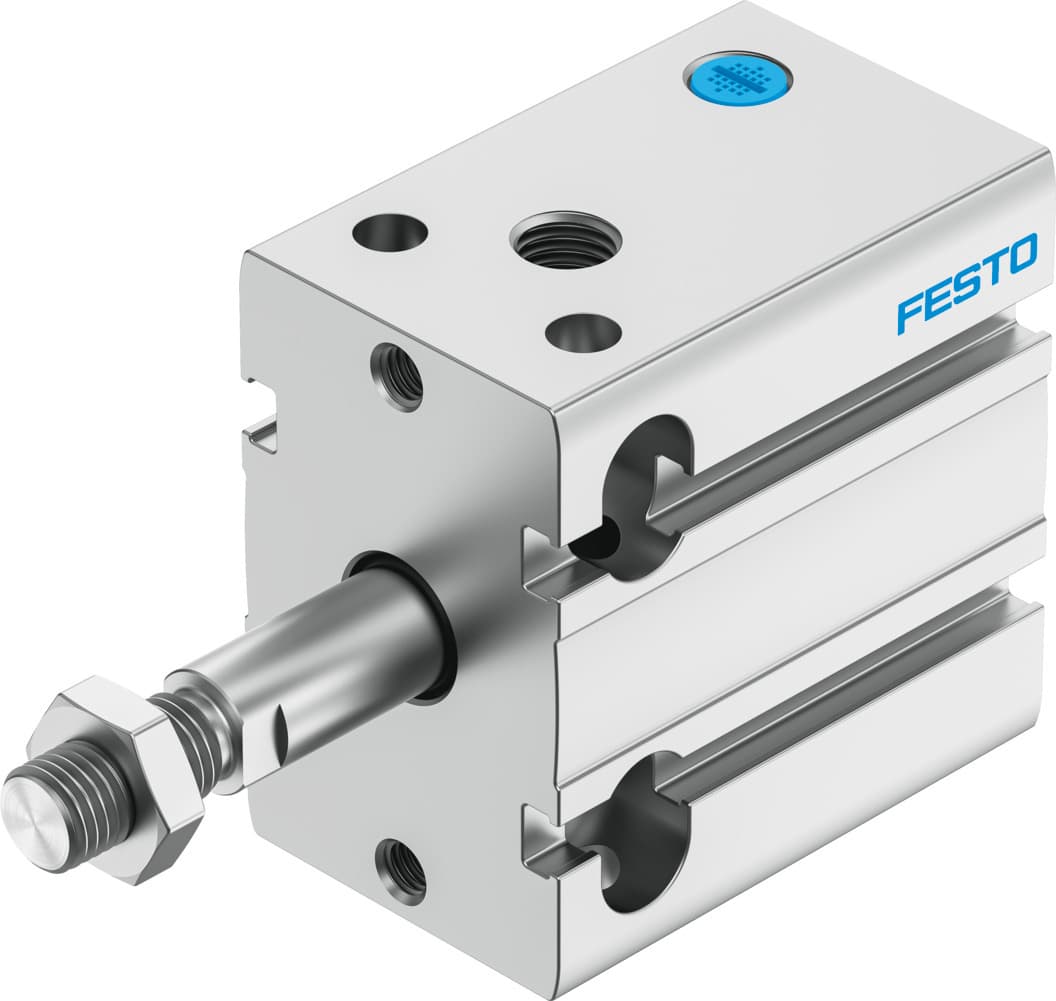

Festo DPDM-32-15-P-PA Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1The DPDM-32-15-P-PA features a compact cylinder design, making it perfect for space-constrained applications.
2Equipped with flexible cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The cylinder can be mounted in any position, providing flexibility in installation and setup.
4Designed to operate at pressures ranging from 1.5 to 8 bar, this cylinder is suitable for demanding applications.
5Classified as CRC 2, the DPDM-32-15-P-PA offers moderate corrosion resistance, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	32 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Single-acting Pulling	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991850
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar, retracting	377N	Theoretical force at 6 bar, advancing	377N
Moving mass at 0?mm stroke	85g	Additional moving mass per 10?mm stroke	9g
Basic weight with 0?mm stroke	310g	Additional weight per 10?mm stroke	51g
Type of mounting	Optionally: With through-hole With internal thread	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4829131

Specifications may be subject to change without notice
