Product Model

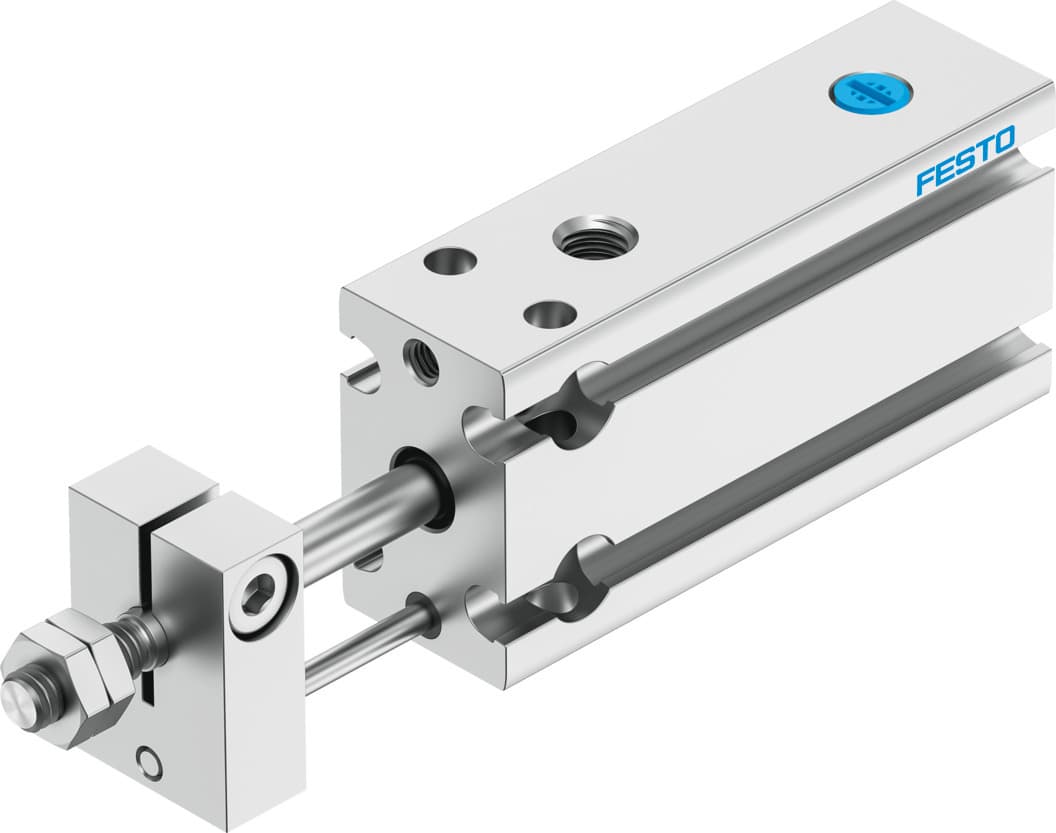

dpdm-q-10-15-p-pa
Selling Points
- 1The DPDM-Q-10-15-P-PA features elastic cushioning rings at both ends, ensuring smooth operation and reducing wear and tear.
- 2Constructed with high-alloy stainless steel, this cylinder offers exceptional durability and resistance to corrosion.
- 3The cylinder can be mounted in any position, providing flexibility for various industrial applications.
- 4Suitable for operating pressures between 2 and 8 bar, making it adaptable to different pneumatic systems.
- 5Classified as low corrosion stress (CRC 1), this cylinder is ideal for use in environments where corrosion is a concern.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 31N |
Theoretical force at 6 bar, advancing | 31N | Moving mass at 0?mm stroke | 13.5g |
Additional moving mass per 10?mm stroke | 1.3g | Basic weight with 0?mm stroke | 36.5g |
Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833142 |
Specifications may be subject to change without notice
