Product Model

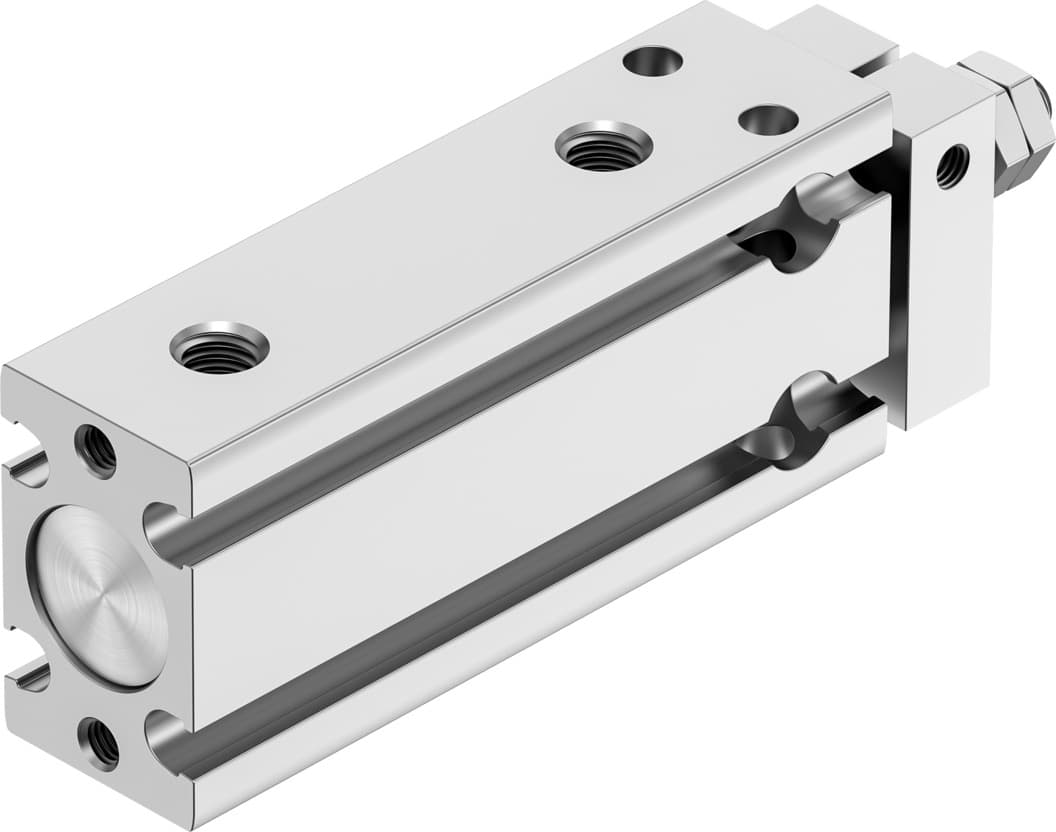

dpdm-q-10-20-pa
Selling Points
- 1The DPDM-Q-10-20-PA offers a compact design, making it suitable for space-constrained applications.
- 2Equipped with elastic cushioning rings/pads at both ends, ensuring smooth operation and reducing wear.
- 3Designed for double-acting operation, allowing for both extension and retraction with compressed air.
- 4Compatible with proximity sensors for precise position sensing, enhancing control and accuracy.
- 5Available with through-hole and internal thread mounting options, providing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 47N |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass at 0?mm stroke | 12.5g | Additional moving mass per 10?mm stroke | 1.3g |
Basic weight with 0?mm stroke | 36.5g | Additional weight per 10?mm stroke | 7.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4832292 |
Specifications may be subject to change without notice
