Product Model
dpdm-q-10-25-pa
Selling Points

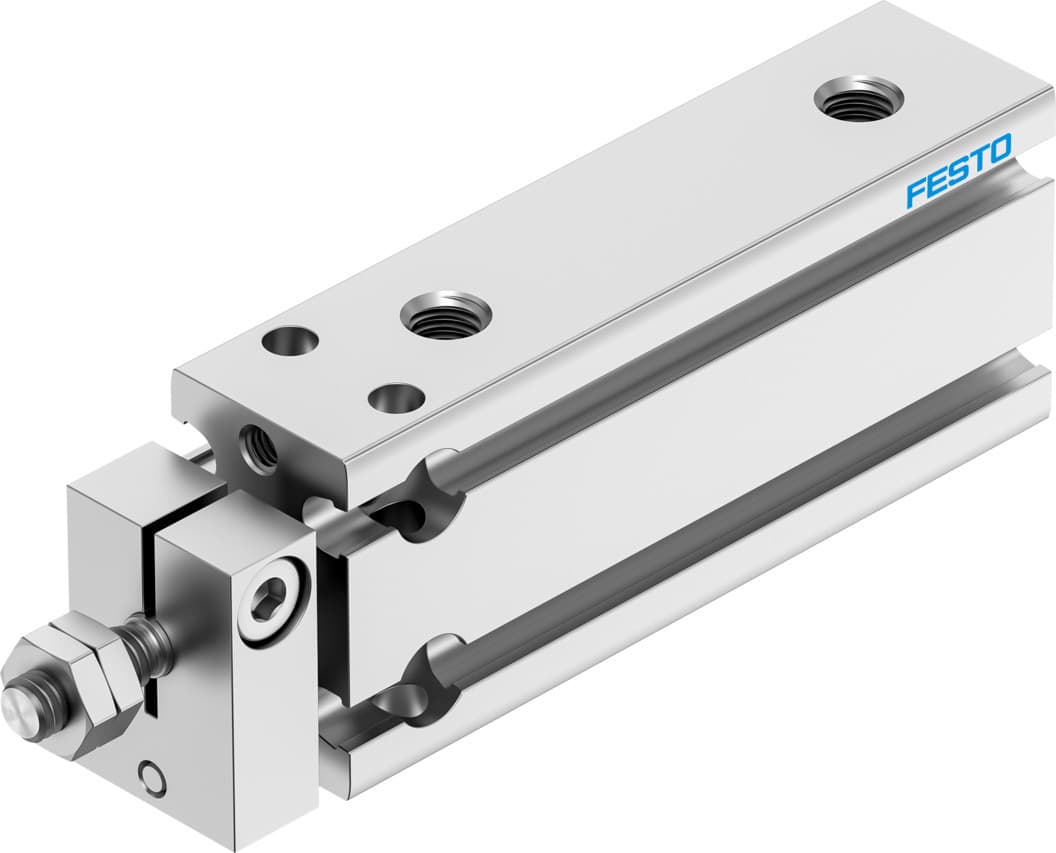

- 1The Festo DPDM-Q-10-25-PA compact cylinder offers a stroke of 25 mm and a piston diameter of 10 mm, providing precise control in various applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The DPDM-Q-10-25-PA features a high-alloy stainless steel piston rod, ensuring durability and resistance to corrosion in demanding environments.
- 4With an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this cylinder is suitable for a wide range of pneumatic systems.
- 5The DPDM-Q-10-25-PA is designed for cleanroom applications, meeting Class 6 standards according to ISO 14644-1, making it ideal for sensitive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 47N |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass at 0?mm stroke | 12.5g | Additional moving mass per 10?mm stroke | 1.3g |
Basic weight with 0?mm stroke | 36.5g | Additional weight per 10?mm stroke | 7.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4832294 |
Specifications may be subject to change without notice
