Product Model
dpdm-q-10-5-s-pa
Selling Points

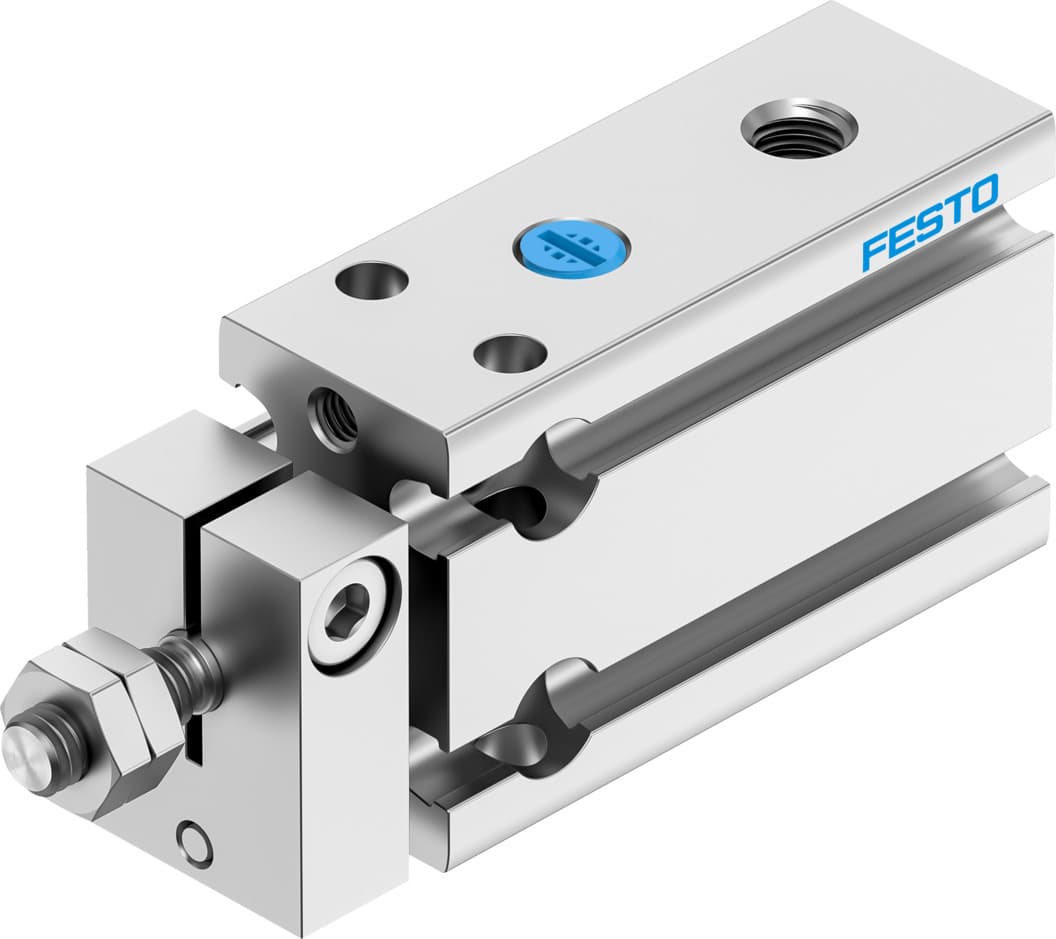

- 1The Festo DPDM-Q-10-5-S-PA compact air cylinder is engineered for precise and reliable performance, ensuring consistent operation in various industrial settings.
- 2With a stroke of 5 mm and a piston diameter of 10 mm, this cylinder is designed to be compact and space-efficient, making it ideal for applications where space is limited.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 4The DPDM-Q-10-5-S-PA offers optional mounting positions, allowing for flexible installation in different applications, including production plants and cleanroom environments.
- 5Designed to operate with compressed air to ISO 8573-1:2010 standards, this cylinder ensures efficient and reliable operation in a variety of industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 38N |
Theoretical force at 6 bar, advancing | 38N | Moving mass at 0?mm stroke | 13g |
Additional moving mass per 10?mm stroke | 1.3g | Basic weight with 0?mm stroke | 37g |
Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4833119 |
Specifications may be subject to change without notice
