Product Model

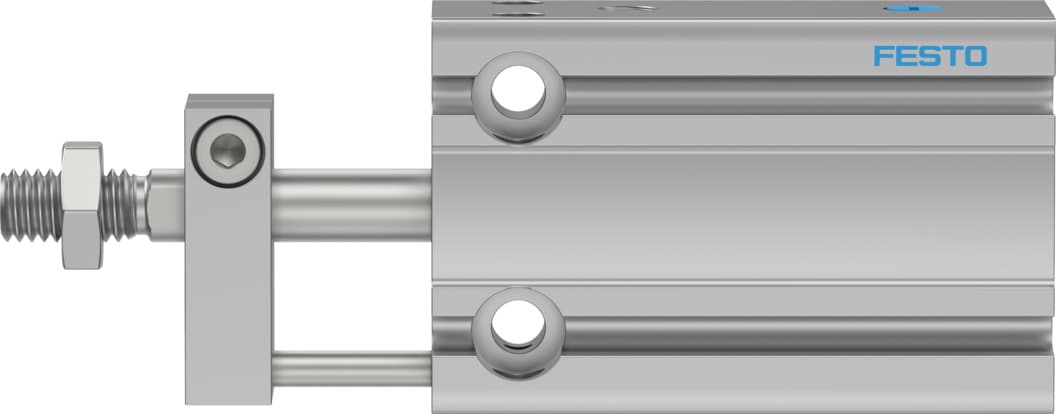

dpdm-q-16-10-p-pa
Selling Points
- 1High Precision and Durability: The Festo DPDM-Q-16-10-P-PA compact air cylinder is engineered for high precision and durability, ensuring reliable performance in various industrial applications.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3Wide Operating Temperature Range: The DPDM-Q-16-10-P-PA operates within a wide temperature range of -10°C to 80°C, making it suitable for diverse environmental conditions.
- 4Versatile Mounting Options: Available with through-hole or internal thread mounting options, this cylinder offers flexibility in installation, allowing for easy integration into different systems.
- 5Compressed Air Operation: Designed to operate with compressed air as per ISO 8573-1:2010, this cylinder ensures efficient and reliable performance in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 93N |
Theoretical force at 6 bar, advancing | 93N | Moving mass at 0?mm stroke | 27g |
Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4834381 |
Specifications may be subject to change without notice
