Product Model

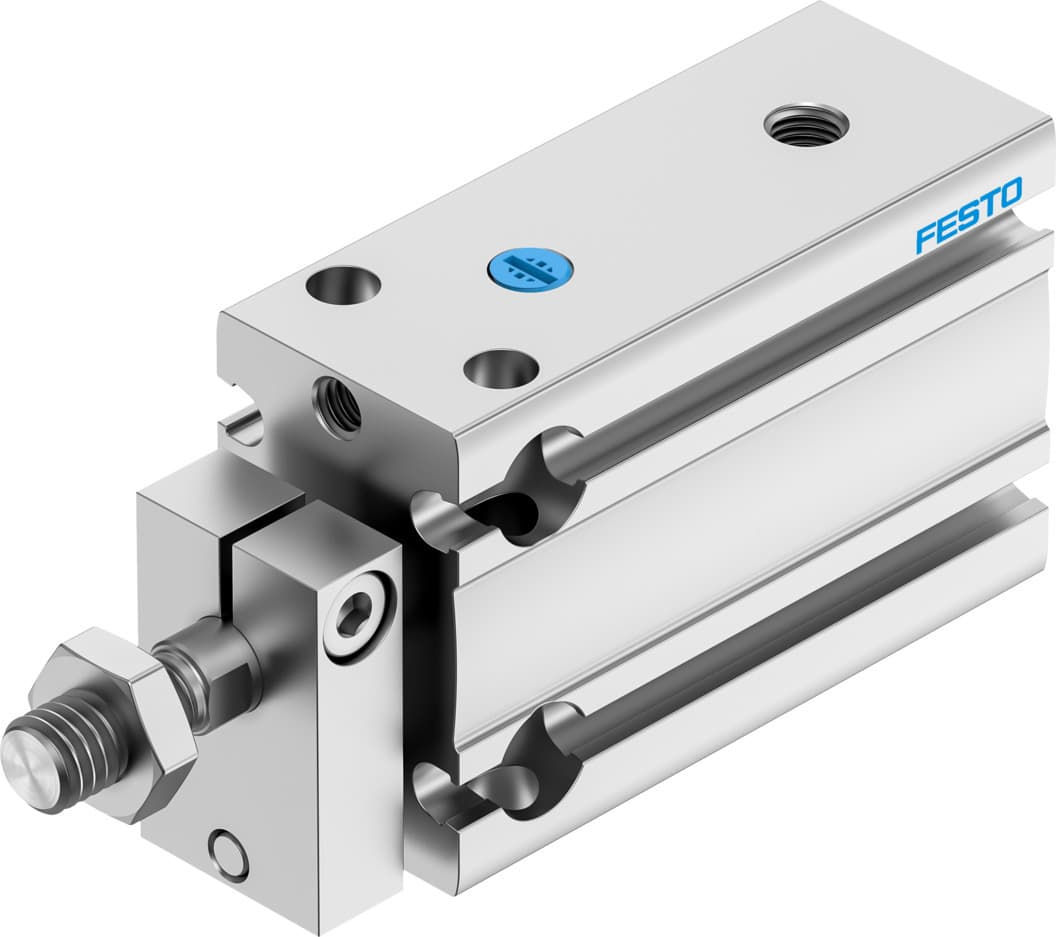

dpdm-q-16-10-s-pa
Selling Points
- 1The Festo DPDM-Q-16-10-S-PA is engineered for precise operations, ensuring consistent performance in demanding industrial environments.
- 2This compact cylinder offers optional mounting positions, allowing for flexible integration into various production setups.
- 3Designed for double-acting operations, it can handle both pushing and pulling tasks with ease, enhancing productivity in manufacturing processes.
- 4Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 5The DPDM-Q-16-10-S-PA is designed with a moderate corrosion resistance class (CRC 2) and meets Class 6 cleanroom standards according to ISO 14644-1, making it suitable for clean and controlled environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 100N |
Theoretical force at 6 bar, advancing | 100N | Moving mass at 0?mm stroke | 27g |
Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4834368 |
Specifications may be subject to change without notice
