Product Model

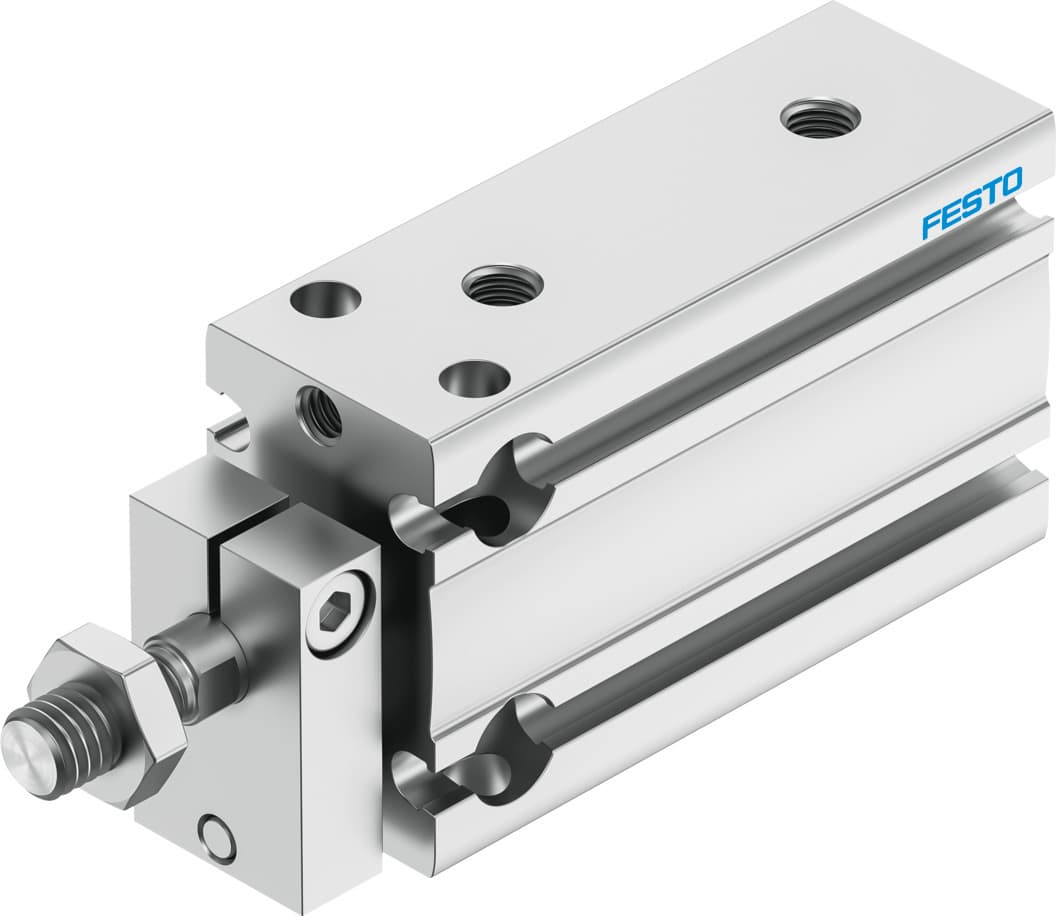

dpdm-q-16-15-pa
Selling Points
- 1The DPDM-Q-16-15-PA is built with high-alloy stainless steel piston rods and anodized wrought aluminum alloy housing, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduced wear, extending its lifespan.
- 3The DPDM-Q-16-15-PA offers flexible mounting positions, allowing for easy integration into various systems and applications.
- 4Designed for single-acting pushing mode, this cylinder is perfect for applications requiring precise and controlled movement.
- 5With a stroke of 15 mm and a piston diameter of 16 mm, the DPDM-Q-16-15-PA is ideal for compact spaces and precision applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 121N |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 27g | Additional moving mass per 10?mm stroke | 2.8g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 13.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4834262 |
Specifications may be subject to change without notice
