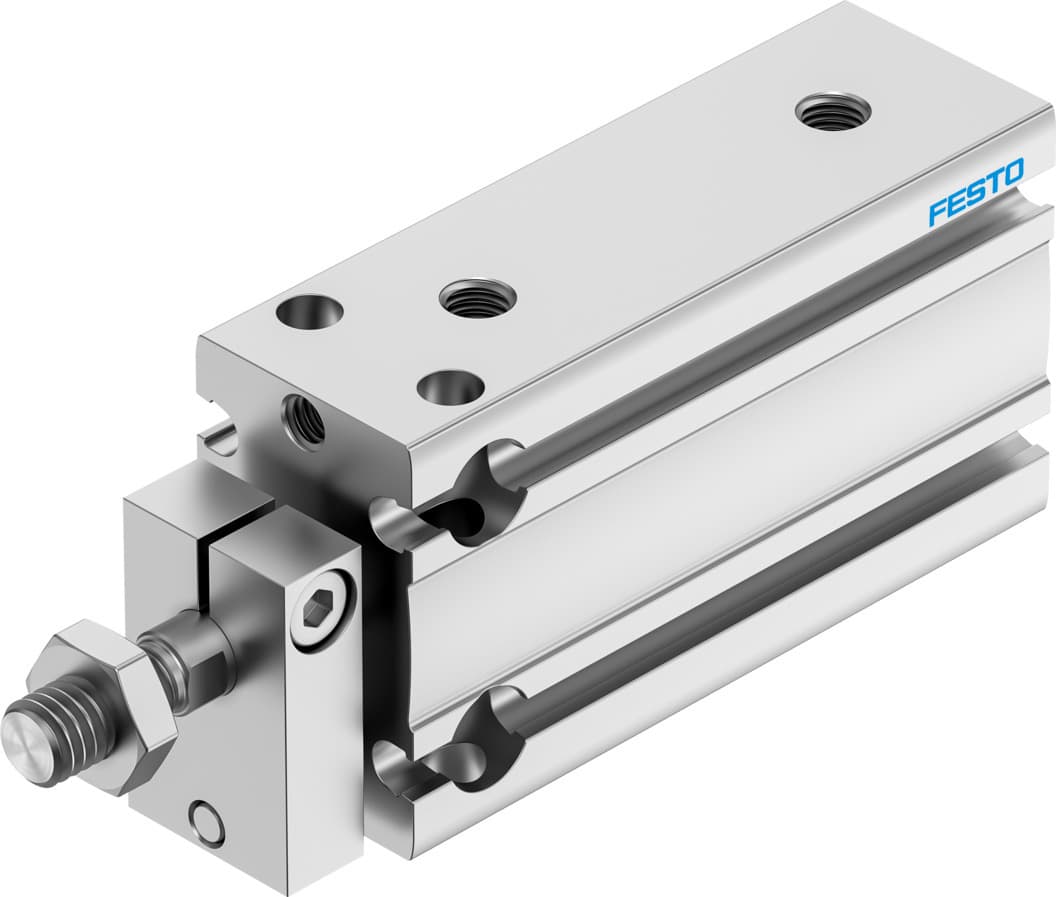

Product Model
dpdm-q-16-20-pa
Selling Points
- 1The Festo DPDM-Q-16-20-PA is engineered for exceptional performance in linear motion applications, ensuring reliable and efficient operation in various industrial settings.
- 2With a stroke of 20 mm and a piston diameter of 16 mm, this compact air cylinder is perfect for applications where space is limited, offering a versatile solution for diverse industrial needs.
- 3Designed for double-acting operation, this cylinder allows for both forward and backward motion, enhancing versatility and functionality in industrial automation systems.
- 4Equipped with elastic cushioning rings/pads at both ends, the DPDM-Q-16-20-PA provides smooth operation and reduces wear and tear on the cylinder, ensuring extended lifespan.
- 5Built with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the housing, this cylinder offers robust construction and resistance to corrosion, making it suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 121N |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 27g | Additional moving mass per 10?mm stroke | 2.8g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 13.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4834263 |
Specifications may be subject to change without notice
