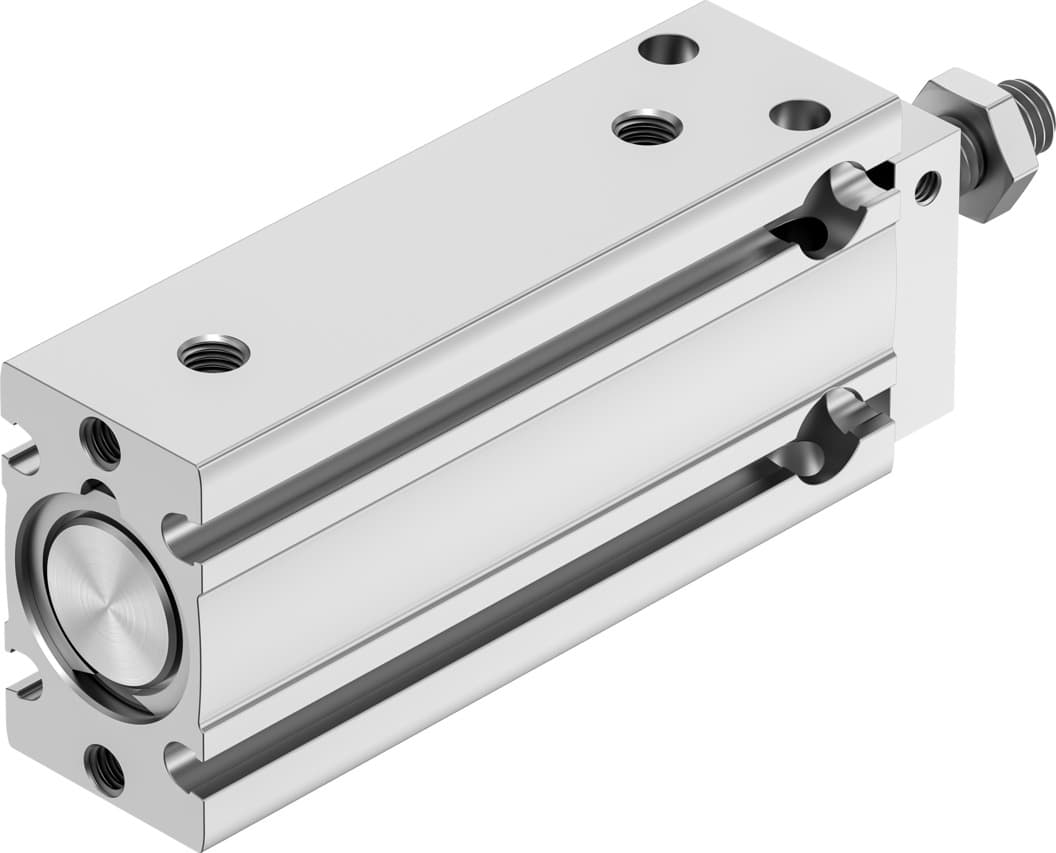

Festo DPDM-Q-16-30-PA Pneumatic Cylinder - Compact Design & High Performance

Selling Points

1The DPDM-Q-16-30-PA offers a compact profile, making it ideal for space-constrained applications.
2Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
3Supports operating pressures from 1.5 to 8 bar, ensuring reliable performance in demanding environments.
4Features position detection via proximity switch for precise control and monitoring.
5Can be mounted using through-hole or internal thread, providing flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	30mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991737
Variants	Piston rod at one end	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.5bar 8bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Theoretical force at 6 bar	121N
Theoretical force at 6 bar, retracting	104N	Theoretical force at 6 bar, advancing	121N
Moving mass at 0?mm stroke	27g	Additional moving mass per 10?mm stroke	2.8g
Basic weight with 0?mm stroke	75g	Additional weight per 10?mm stroke	13.5g
Type of mounting	Optionally: With through-hole With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4834265

Specifications may be subject to change without notice
