Product Model

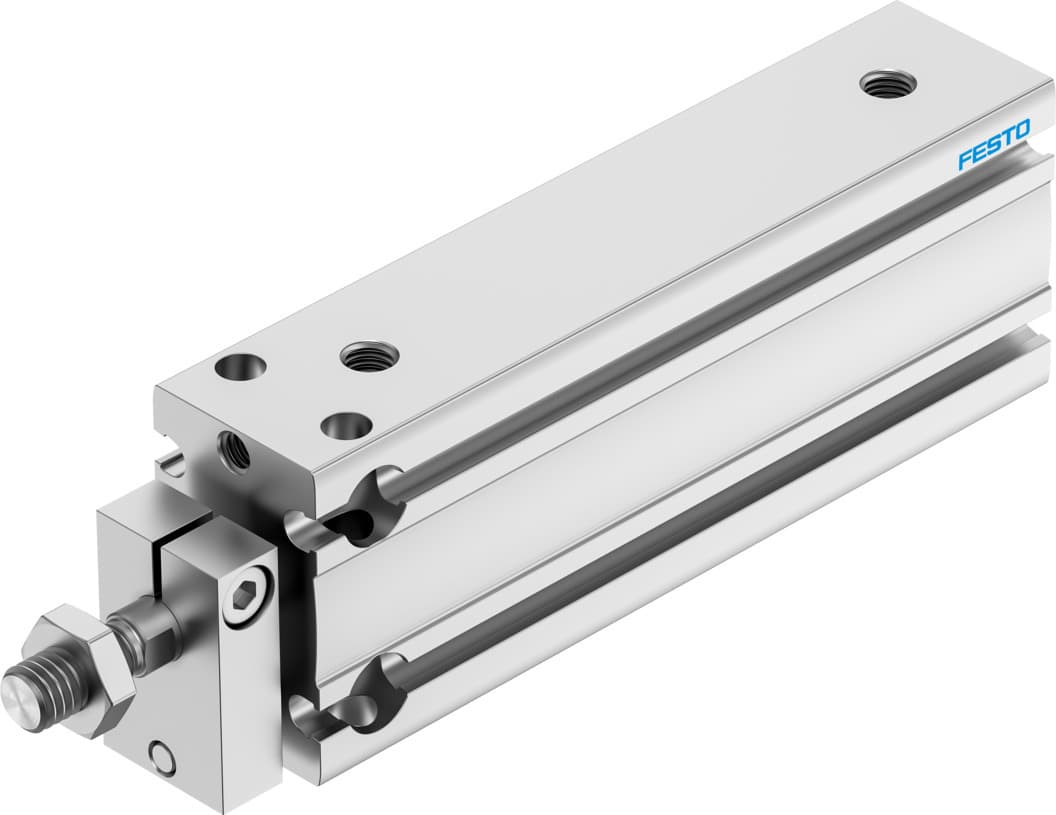

dpdm-q-16-50-pa
Selling Points
- 1High-Performance Design: The DPDM-Q-16-50-PA features a double-acting design with elastic cushioning rings/plates at both ends, ensuring smooth and precise operation.
- 2Versatile Mounting Options: This compact cylinder can be mounted in any position, offering flexibility in various industrial settings.
- 3Robust Construction: Made from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
- 4Efficient Operation: Compatible with compressed air to ISO 8573-1:2010 standards, allowing for efficient operation within a wide range of pressures (1.5 to 8 bar).
- 5Advanced Position Detection: Equipped with proximity sensor compatibility for precise position detection, enhancing control and accuracy in applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 121N |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 27g | Additional moving mass per 10?mm stroke | 2.8g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 13.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4834267 |
Specifications may be subject to change without notice
