Product Model
dpdm-q-16-5-pa
Selling Points

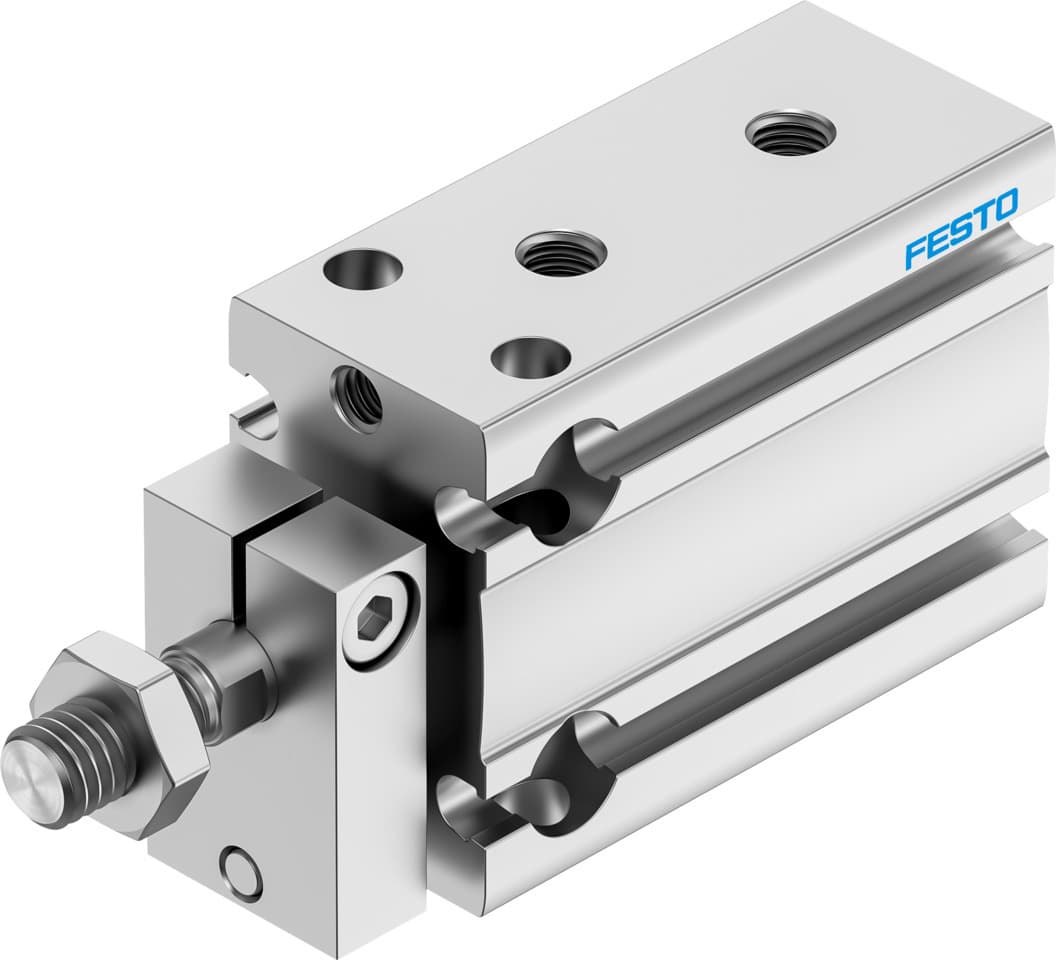

- 1The Festo DPDM-Q-16-5-PA compact air cylinder features a 16 mm piston diameter and a 5 mm stroke, making it ideal for applications requiring precise movement and control.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear on the system, extending its lifespan.
- 3The DPDM-Q-16-5-PA supports single-acting mode of operation, allowing for pushing action, and can be mounted in any position, providing flexibility in installation.
- 4With an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), this cylinder is compatible with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.
- 5The Festo DPDM-Q-16-5-PA is constructed from high-quality materials, including anodized wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 121N |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 27g | Additional moving mass per 10?mm stroke | 2.8g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 13.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4834260 |
Specifications may be subject to change without notice
