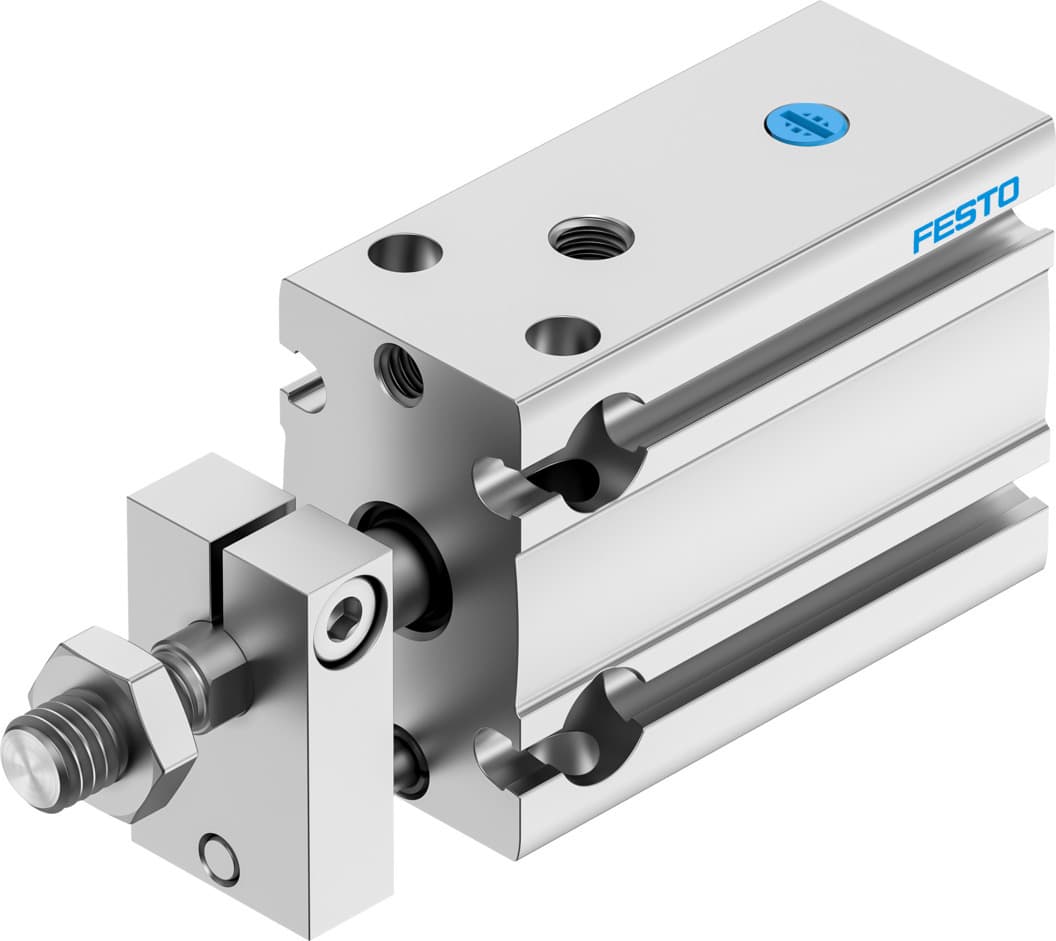

Product Model
dpdm-q-16-5-p-pa
Selling Points
- 1The DPDM-Q-16-5-P-PA compact cylinder offers precise control and reliable operation, making it ideal for various industrial applications.
- 2With a stroke of 5 mm and a piston diameter of 16 mm, this cylinder is designed to be compact and space-efficient.
- 3Equipped with elastic cushioning rings/plates at both ends, it provides smooth operation and reduces wear and tear.
- 4The cylinder can be mounted in any position, offering flexibility in installation.
- 5Meets ISO 8573-1:2010 standards for compressed air quality and is RoHS-compliant, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 93N |
Theoretical force at 6 bar, advancing | 93N | Moving mass at 0?mm stroke | 27g |
Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4834380 |
Specifications may be subject to change without notice
