Product Model

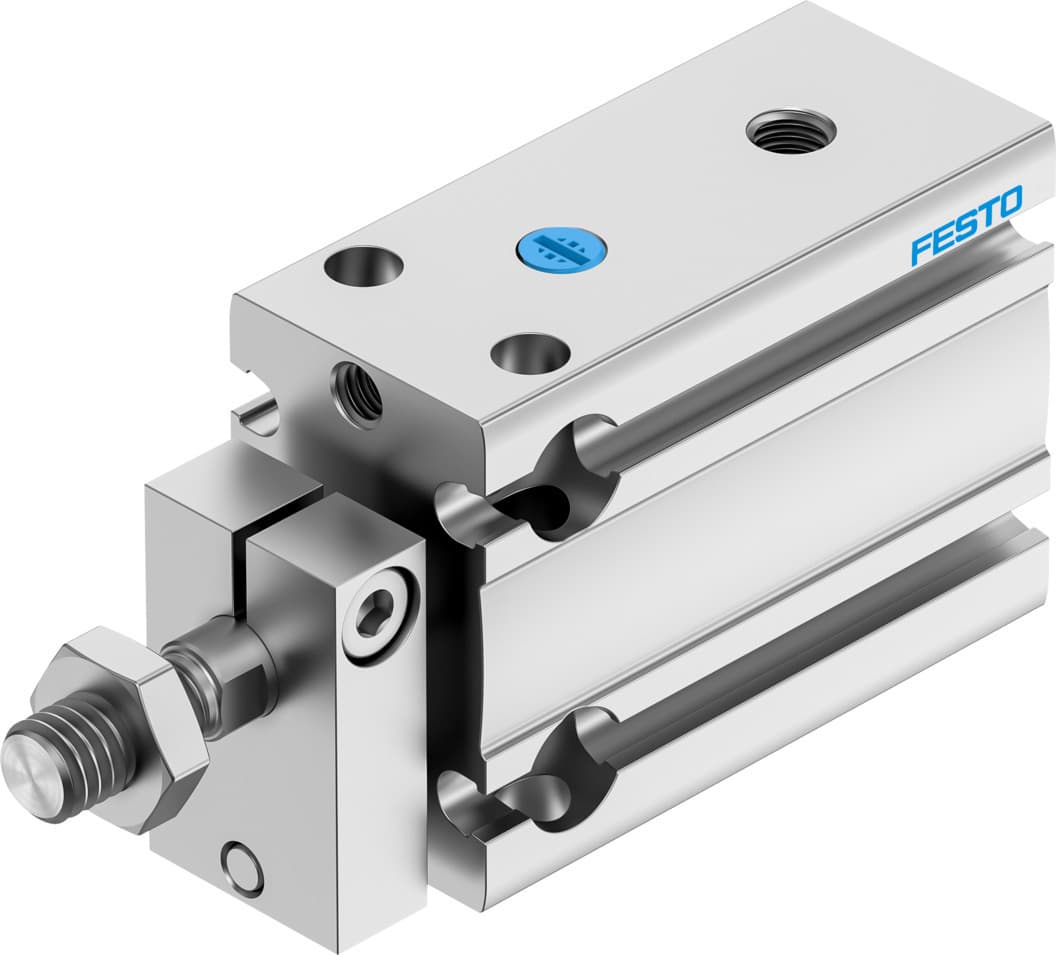

dpdm-q-16-5-s-pa
Selling Points
- 1The Festo DPDM-Q-16-5-S-PA features a compact size, making it ideal for integration into existing systems, saving space and reducing installation time.
- 2Made from durable materials, this cylinder ensures long-lasting performance in demanding environments, making it a reliable choice for industrial applications.
- 3With a single-acting design, the DPDM-Q-16-5-S-PA operates efficiently in both directions, providing consistent performance and precise control.
- 4Equipped with elastic cushioning rings/plates at both ends, this cylinder reduces wear and tear, ensuring smooth operation and extending its lifespan.
- 5Available with through-hole or female thread mounting options, the DPDM-Q-16-5-S-PA offers flexibility in installation, catering to various industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 100N |
Theoretical force at 6 bar, advancing | 100N | Moving mass at 0?mm stroke | 27g |
Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4834367 |
Specifications may be subject to change without notice
