Product Model
dpdm-q-32-5-p-pa
Selling Points

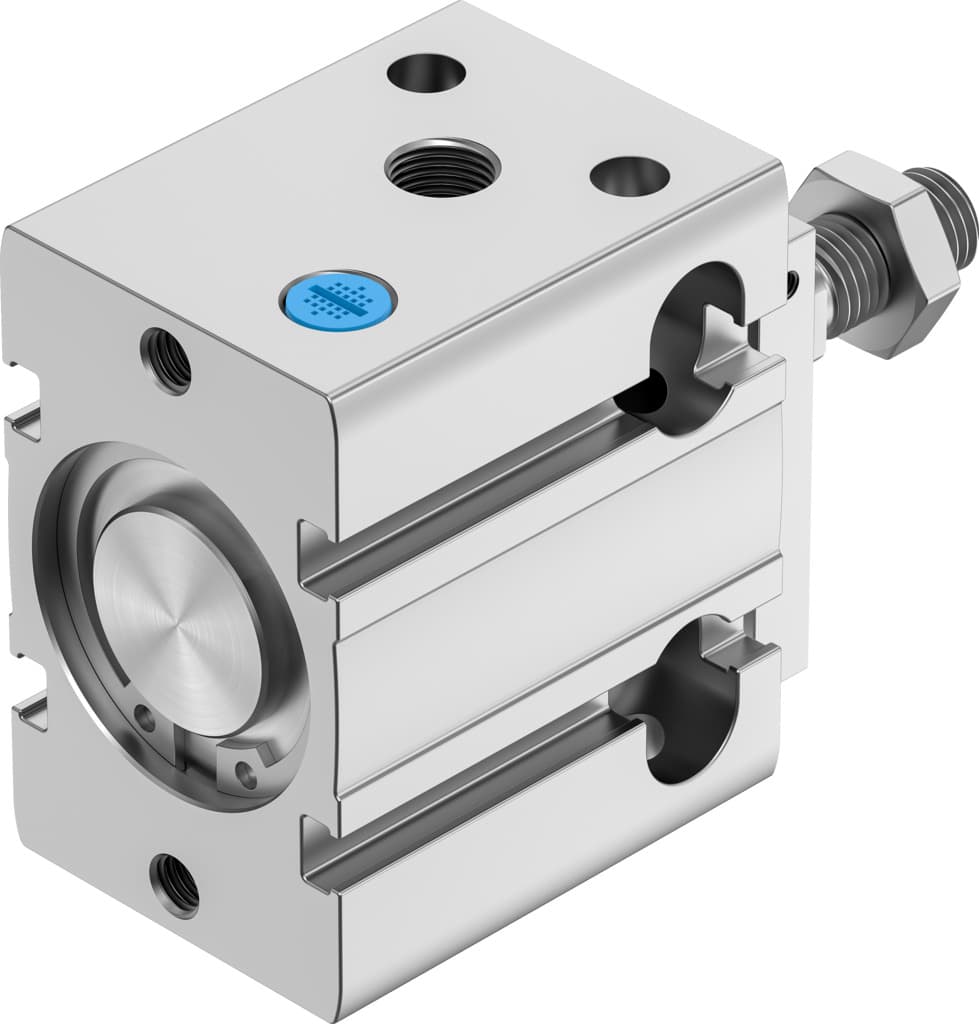

- 1The Festo DPDM-Q-32-5-PA compact cylinder offers a 32mm piston diameter and a 5mm stroke, providing precise control and efficient operation in various industrial settings.
- 2This double-acting cylinder features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the piston and rod.
- 3The DPDM-Q-32-5-PA is designed for versatile mounting options, allowing for flexible installation in different applications.
- 4With a protection against rotation feature, this cylinder ensures stability and prevents unwanted rotation, enhancing overall performance and safety.
- 5The Festo DPDM-Q-32-5-PA operates with compressed air according to ISO 8573-1:2010 [7:4:4] standards and supports lubricated operation for extended lifespan and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 377N |
Theoretical force at 6 bar, advancing | 377N | Moving mass at 0?mm stroke | 109g |
Additional moving mass per 10?mm stroke | 10.5g | Basic weight with 0?mm stroke | 334g |
Additional weight per 10?mm stroke | 52.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4828499 |
Specifications may be subject to change without notice
