Product Model

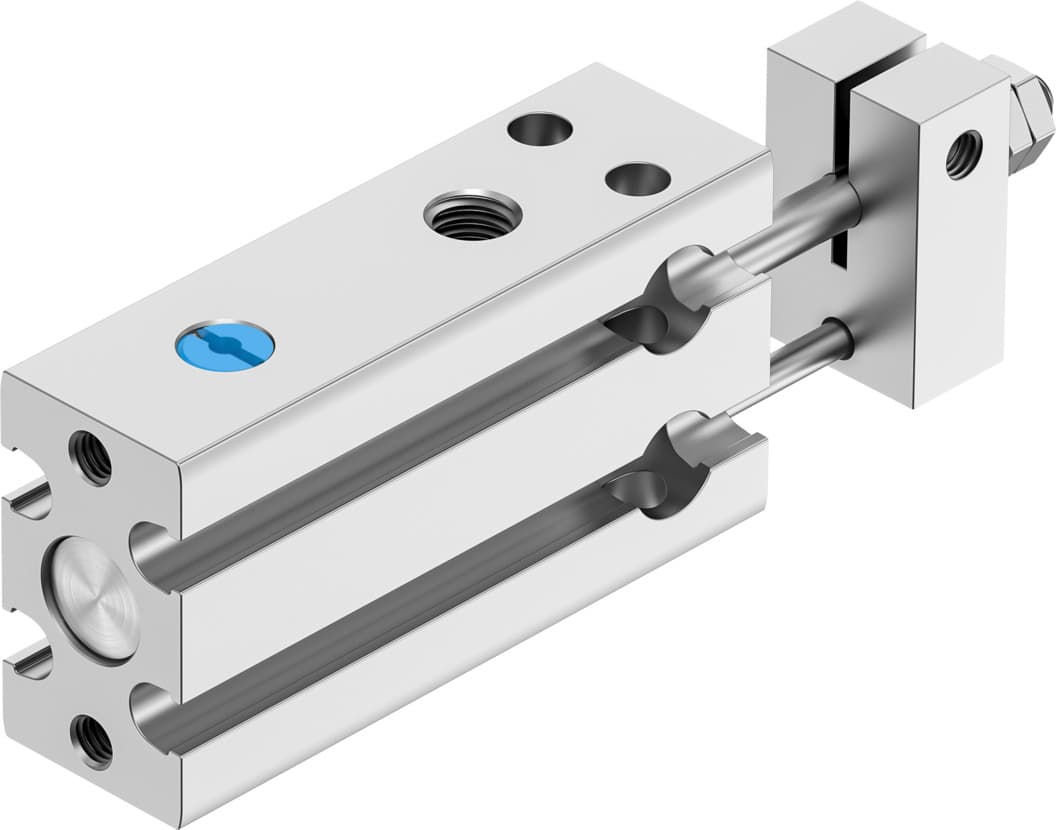

dpdm-q-6-10-p-pa
Selling Points
- 1The DPDM-Q-6-10-P-PA is designed for space-saving applications, making it perfect for modern industrial setups.
- 2With a piston diameter of 6 mm and a stroke length of 10 mm, this cylinder ensures precise movement and control.
- 3Equipped with elastic cushioning rings/plates at both ends, it provides smooth operation and reduces wear and tear.
- 4Features position sensing via proximity sensor, ensuring accurate detection and control of the cylinder's position.
- 5Constructed from high-alloy stainless steel piston rod and anodized wrought aluminum alloy housing, it offers excellent durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 9N |
Theoretical force at 6 bar, advancing | 9N | Moving mass at 0?mm stroke | 7.5g |
Additional moving mass per 10?mm stroke | 0.9g | Basic weight with 0?mm stroke | 25.5g |
Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4830975 |
Specifications may be subject to change without notice
