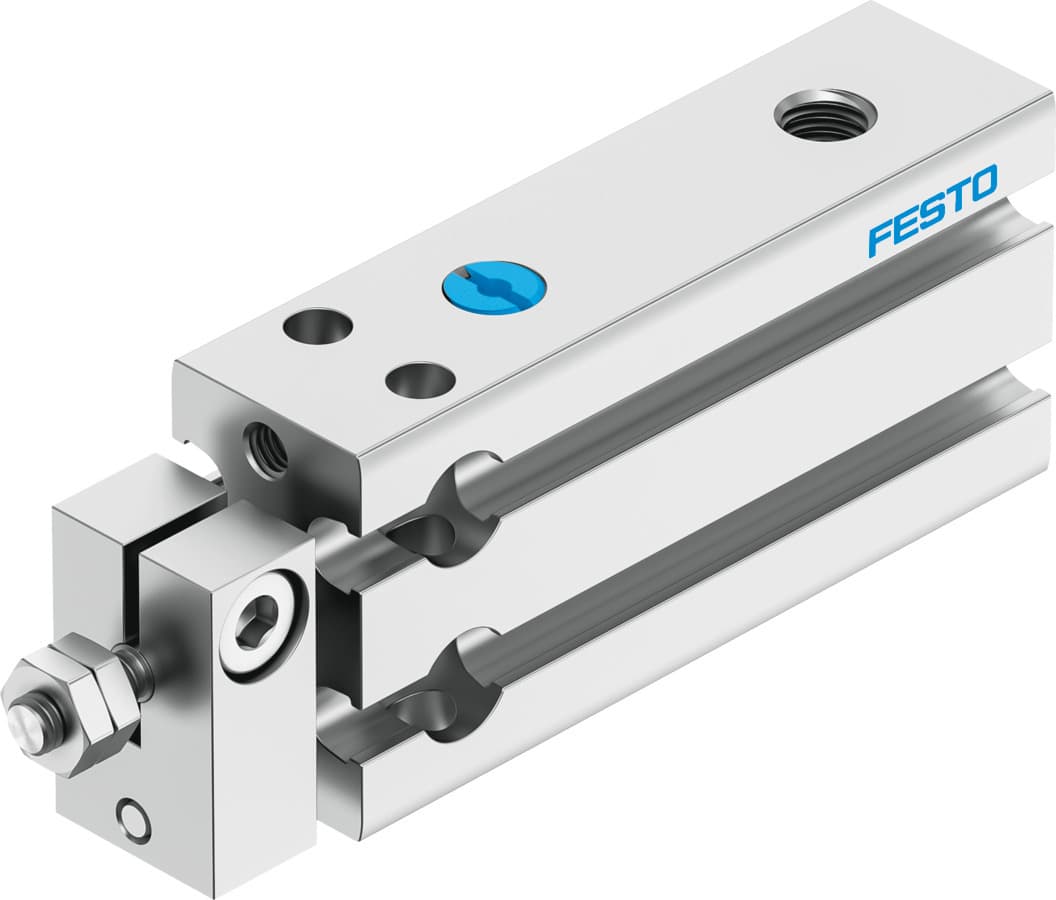

Festo DPDM-Q-6-15-S-PA Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1The Festo DPDM-Q-6-15-S-PA features a compact cylinder design, making it perfect for space-constrained applications.
2This cylinder operates on a single-acting pushing action, providing efficient and reliable performance.
3Equipped with flexible cushioning rings/plates at both ends, it ensures smooth operation and reduces wear.
4The cylinder can be mounted in any position, offering flexibility in installation.
5Classified as CRC 1, it has low corrosion stress, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	6 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991732
Variants	Piston rod at one end	Protection against torsion/guide	Guide rod with yoke
Operating pressure	2.5bar 8bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Theoretical force at 6 bar	13N
Theoretical force at 6 bar, advancing	13N	Moving mass at 0?mm stroke	7.5g
Additional moving mass per 10?mm stroke	0.9g	Basic weight with 0?mm stroke	25.5g
Additional weight per 10?mm stroke	6.3g	Type of mounting	Optionally: With through-hole With internal thread
Pneumatic connection	M5	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	4830972

Specifications may be subject to change without notice
