Product Model

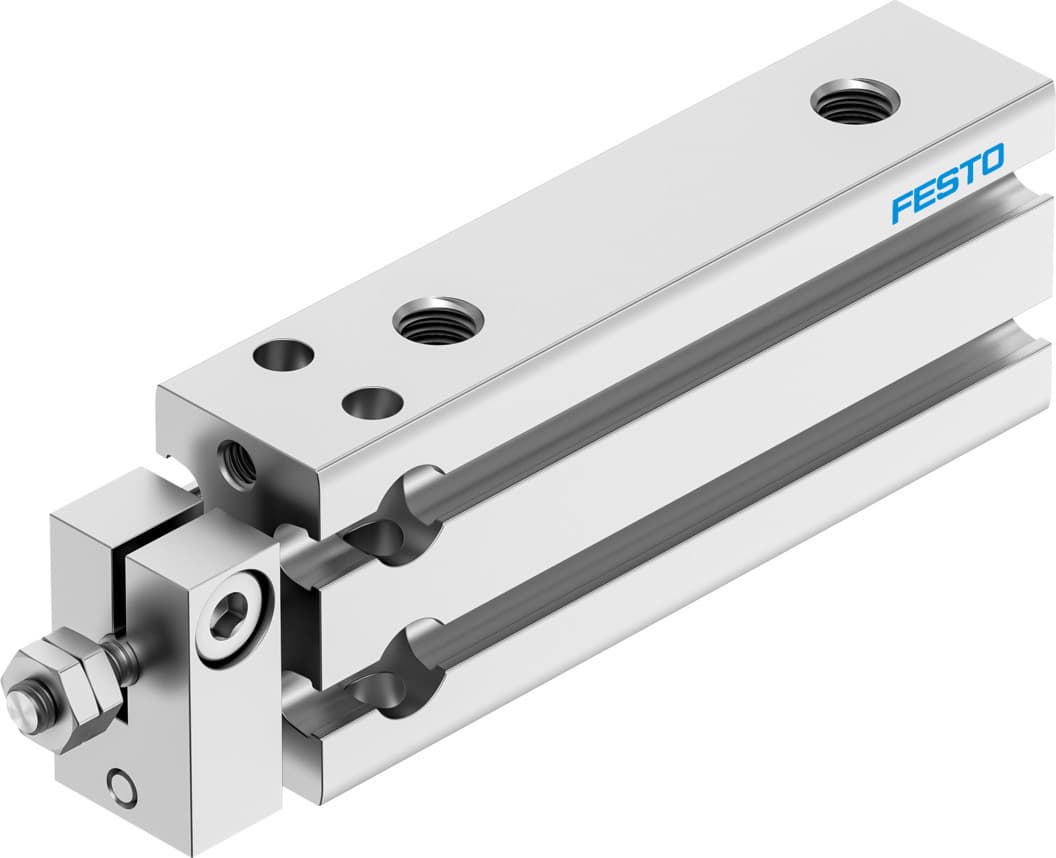

dpdm-q-6-25-pa
Selling Points
- 1The Festo DPDM-Q-6-25-PA is built with high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear on the components.
- 3The DPDM-Q-6-25-PA offers flexible mounting options, including through-hole and internal thread configurations, making it easy to integrate into various systems.
- 4Featuring position sensing via proximity switch, this cylinder ensures accurate control and monitoring of its movement.
- 5Meets ISO 8573-1:2010 for compressed air quality and is RoHS-compliant, ensuring it meets stringent environmental and safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 17N |
Theoretical force at 6 bar, retracting | 13N | Theoretical force at 6 bar, advancing | 17N |
Moving mass at 0?mm stroke | 7.1g | Additional moving mass per 10?mm stroke | 0.9g |
Basic weight with 0?mm stroke | 25.5g | Additional weight per 10?mm stroke | 6.3g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830965 |
Specifications may be subject to change without notice
